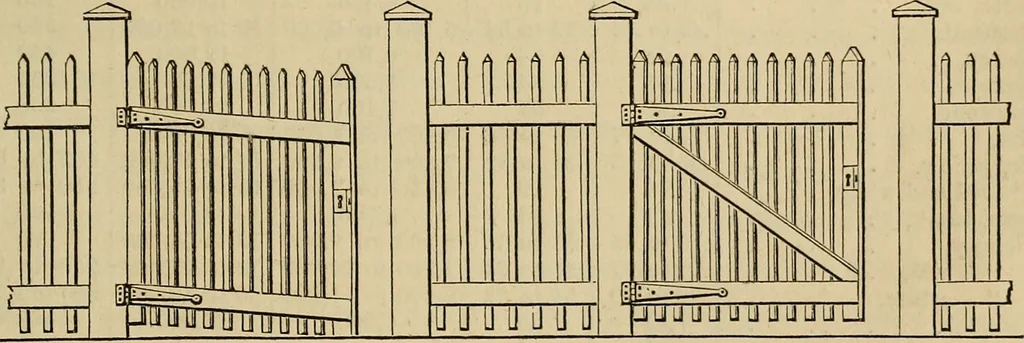

are is taken to combine all the parts, as far as pos-sible, in triangles; which being once done, we know that the rigidity ofthe system may be insured by giving the requisite strength to the timbersand joints. Tlie framing of a gate presents a very simple illustration of this prin-ciple. The… … Fig. 217. Fig. 218. that the whole frame should have been composed of elementary parallelo-grams, each component parallelogram, and, therefore, the w^hole frame ofthe gate, would readily have altered its form. A bar placed diagonally across the gate remedies the evil, convertingthe elementary parts…
