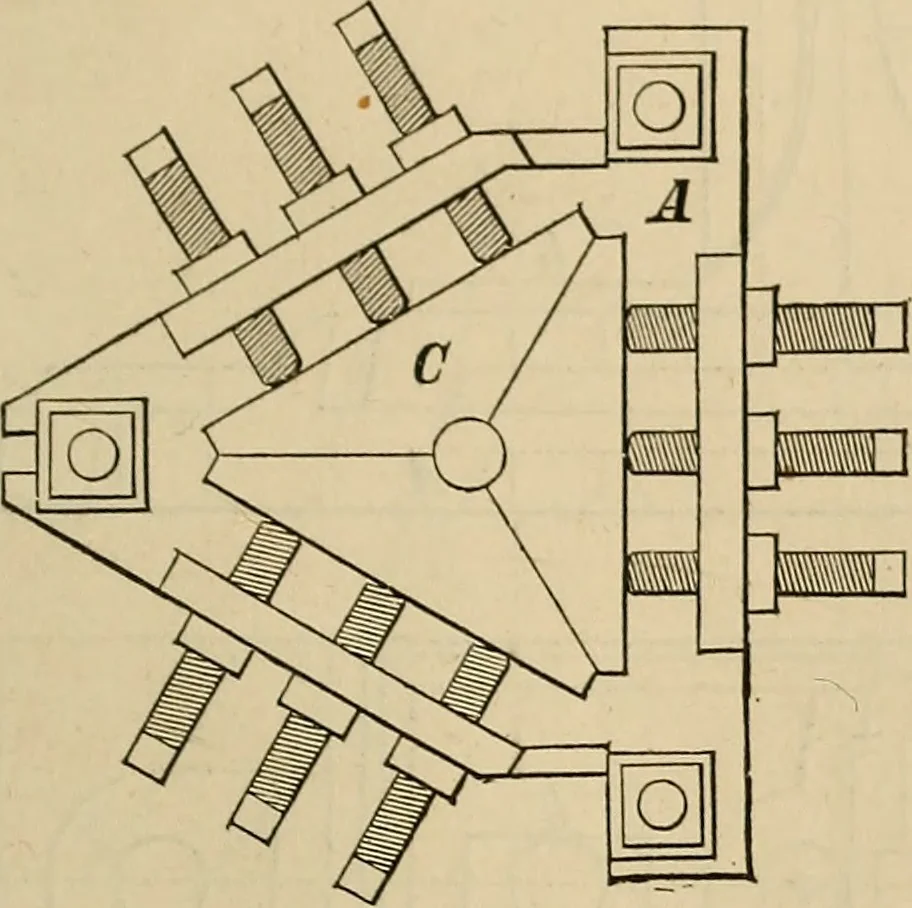

shaft and wheel; by thesescrews the wheel can be raised or lowered, so as to adjust its position accu-rately ; beneath the box will be seen a movable collar, to adjust the lateralposition of shafts. Figs. 236, 237 are the plan and elevation for the stej?^ or rather guide(as it bears no weight), of… … n A Fi?. 236. Fig. 237. justment by the three sets of set-screws. Wooden steps are often used tosupport the shafts of the smaller horizontal wheels beneath the surface ofthe water ; the fibres of the wood are placed vertically, and afford a veryexcellent bearing surface. When cast iron or steel is…
