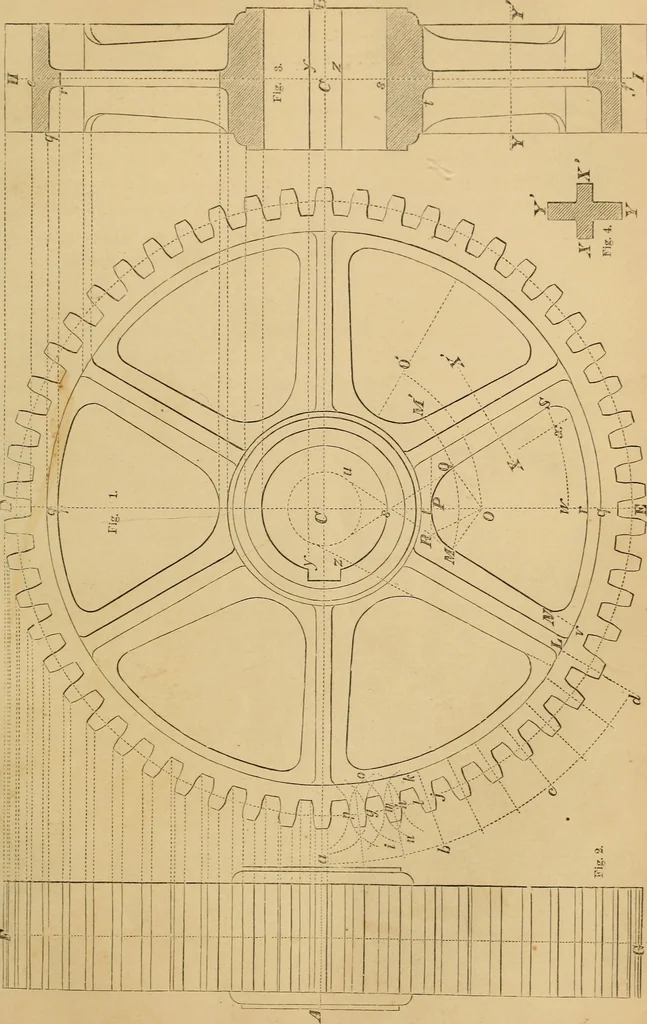

equal to the pitchof the wheel. To draw the arms, from the centre C, with the radius C u equal to thepitcli, describe a circle ; draw all the radii, as C L, wliich arc to form tliecentre lines of the arms, and set off the distance L v, equal to | pitch, oneach side of these radii at the iniier… … r L A T E X A 111. 176
