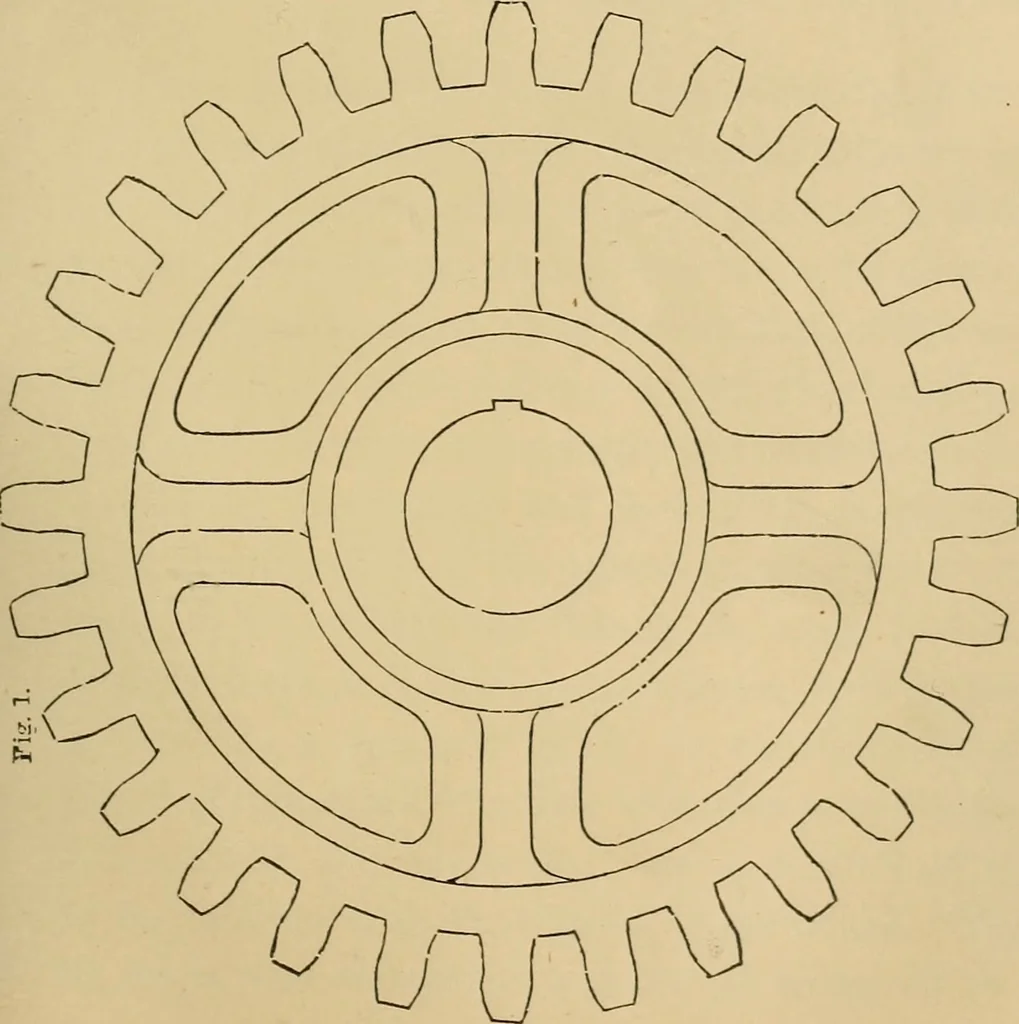

An illustration from Appleton's cyclopædia of drawing, designed as a textbook for the mechanic, architect, engineer, and surveyor, 1866, leaf 228
-■-^—=_^ _ f i I t I cr ( 0- t=i DRAWING OF MACIIINEKT. 179 roots of the teeth, these points in each individual tooth maj be determinedby a similar process. But since, in cases where strict accuracy is required,a greater number of points is necessary for the construction of the curva-ture of the…
