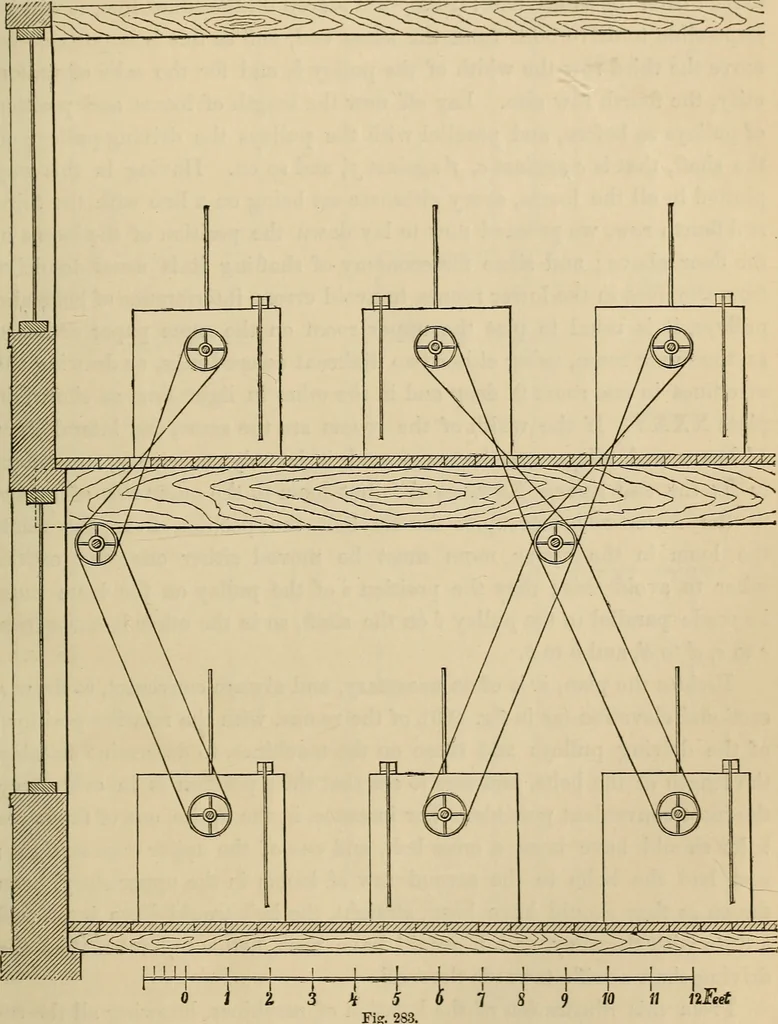

arc least in the way. Oneoperative usually tends lour looms ; they are therefore generally arrangedin sets of four, two on each side of the alley, being placed as close to each DRAWING OF MACHINERY, 199 Other as possible, say one incli between the lathes, a small cross alley behigleft between them… … will be observed that looms are generally rights and lefts, so that thepulleys of both looms come in the space where there is no alley. Shouldthe pulley come beneath a beam, the loom must be either moved to avoid 200 DKAWINa OF MACHINERY. it, or tlie pulley may be shifted to the opposite end of the…
