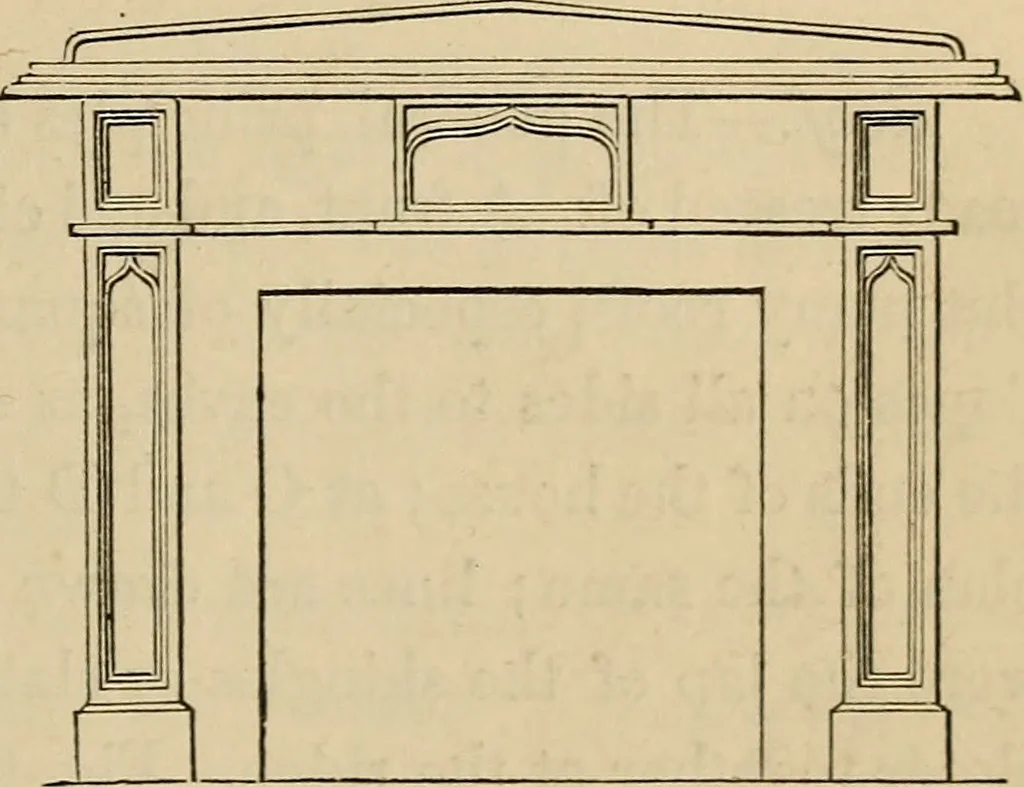

Fig. 60. w4dth by 8 inches in depth. The requisite depth is given by the projec-tion of the grate, and of the mantel-piece. Fig. 60 rex^resents the eleva-tion of a mantel-piece of very usual proportions. Tlie length of the mantelis 5 feet 5 inches, the width at base 4 feet 6 inches, the height of…
