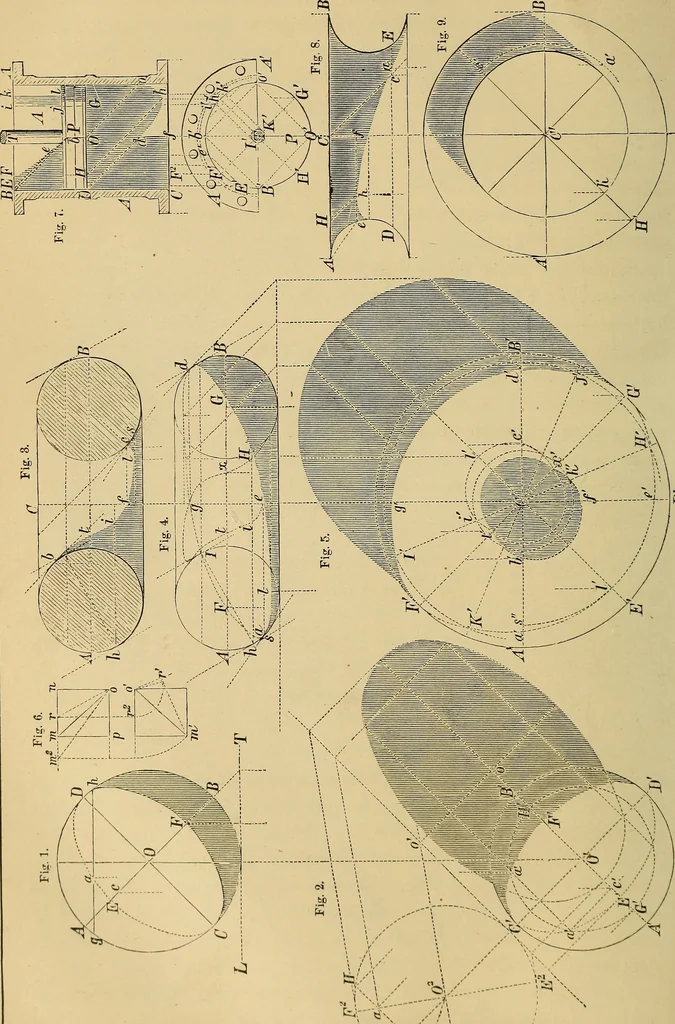

t the first line at h as points in the line of shadow. Plate LXXXI., figs. 1, 2.—To find the line of shade in a sphere, andthe outline of its shadow cast upon the horizontal plane. Tlie line of shade in a sphere is simply the circumference of a greatcircle of wliich the plane is perpendicular to… … kl-. SHADING AND SHADOWS. 325 the major axes of wliicli are obviously the diameters C D and C D, drawnat an angle of 45°. To find the minor axes of these curves, assume any point O, upon theprolongation of the diameter of the perpendicular C D (fig. 2), drawthrough this point the straight line O o\…
