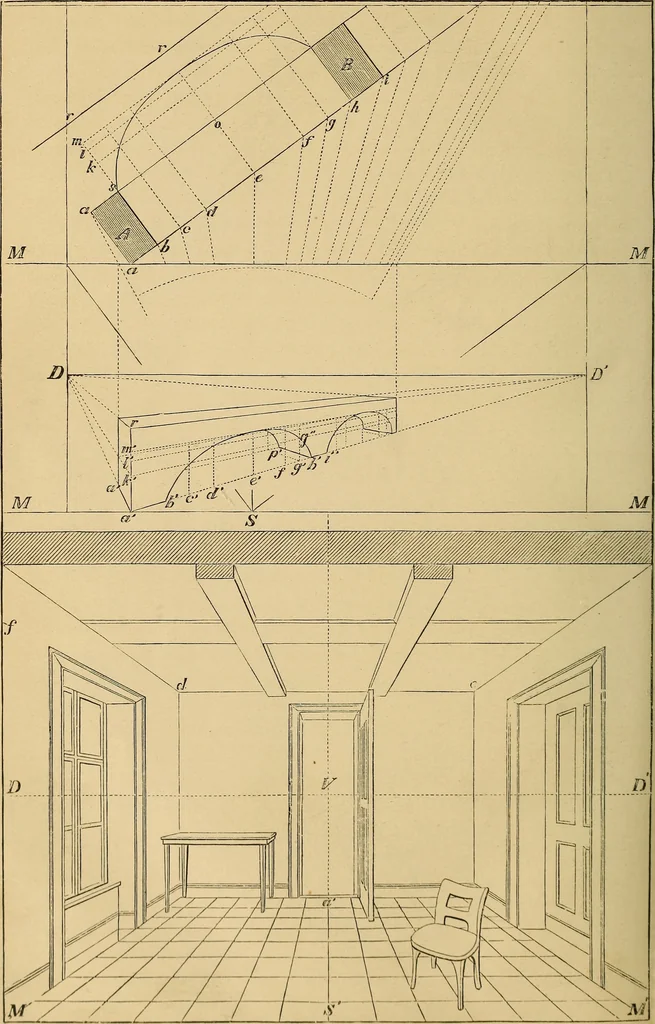

4ro PLATE cm. … PERSPECTIVE DRAWING. 401 the line hj^ will be the perspective width of the pier ; draw y D ; and fromh\ ¥ D; from g the intersection of the curve of the arch by the perpen-dicular to g\ draw g D, the intersection with h D will be one point inthe curve of the arch on the opposite side of the bridge:…
