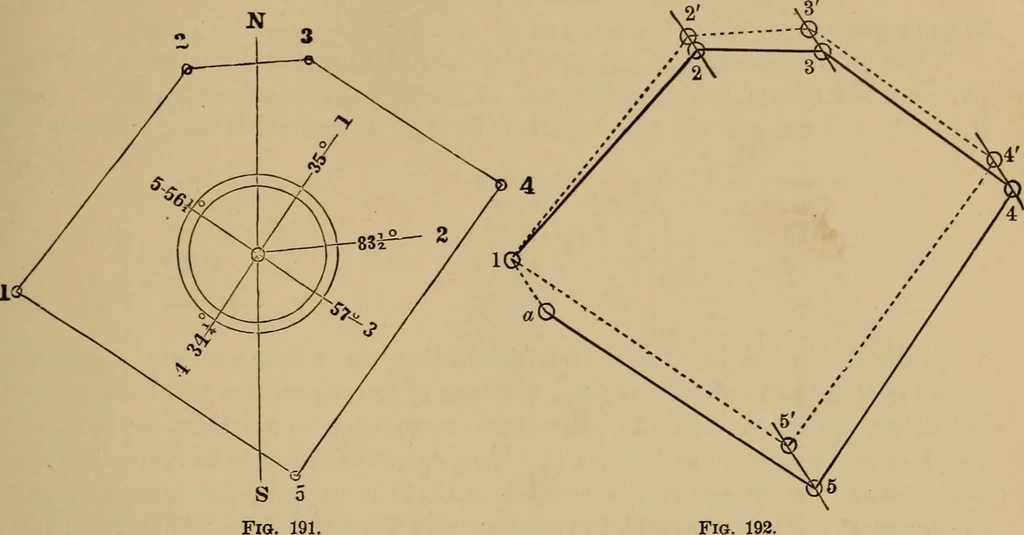

Fig. 190. intersections of the perpendiculars by this line will determine how much eachof the points of the plot is to be moved on the parallels to 1 « to distributethe error. The dotted lines on the figure show the corrected outline. If theamount by which the plot fails to close is large, the plot… … Fig. 192. departures, the difference of latitude between two stations being the differencenorth and south between them; the difference of departure, the difference eastand west. Thus, N S (Fig. 194) being the meridian,and A B the course, A C is the difference oflatitude, and A D the departure. The…
