A text book of geometrical drawing : abridged from the octavo edition : for the use of schools in which the definitions and rules of geometry are familiarly explained, the practical problems are arranged from the most simple to the more complex, and in their description technicalities are avoided as much as possible : with an introduction to isometrical drawing : and an essay on linear perspective and shadows ... (1849)

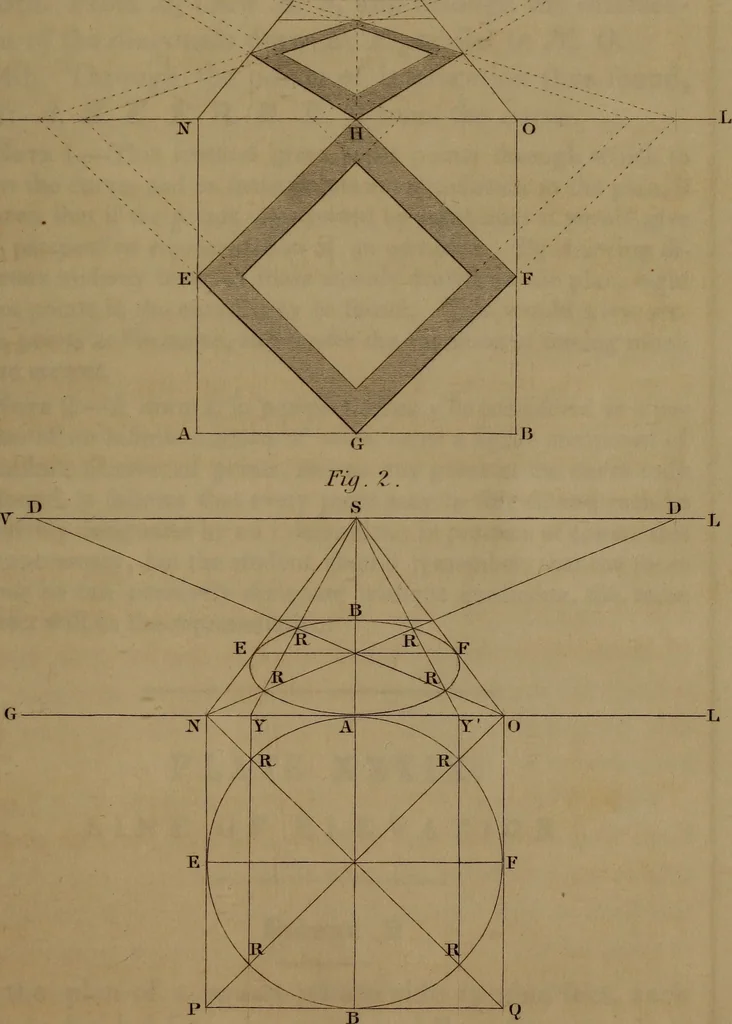

around it onthe plan and also in perspective, to prove that the samedepth and breadth is given to objects by both methodsof projection. Figure 2. To draw the Perspective Representation of a Circleviewed directly in front and touching the PerspectivePlane. Find the position of any number of points… … W: Mirahf^. IJlrnj^n k. Snv,s PLATE XXXVIII. 115 intersections of said diagonals with the circumference,draw the chords R. R, R, jR, continued to meet theline G. Lin Fand YJ 2nd. Put the square in perspective as before shewn,draw the diagonals JV. D, and 0. D, and the radialsF. S and YJ S. 3rd.…
