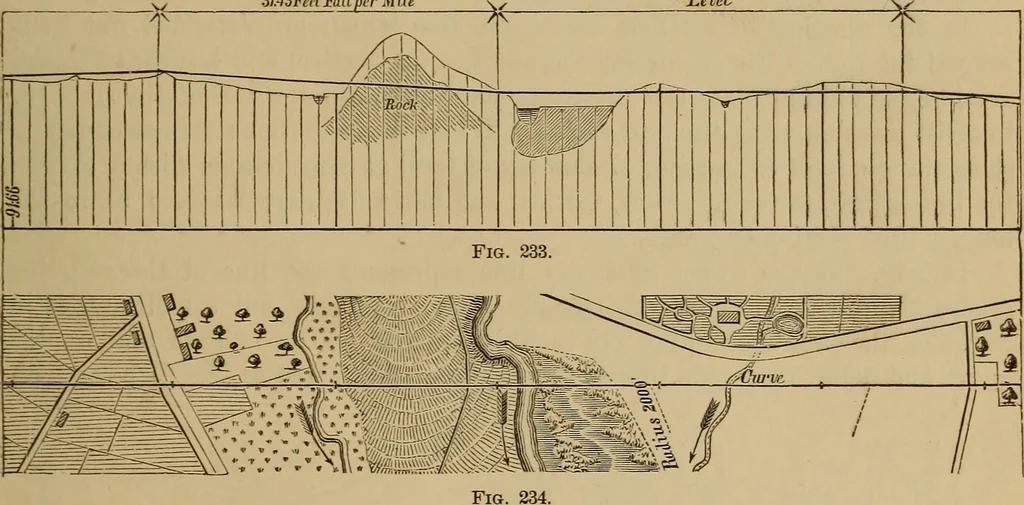

point to point by variable curves. Knowing the centralordinate of the curve between two points, the central ordinate of one half thatcurve will be approximately one quarter of the first; but the greater the num-ber of degrees in the arc, the less near to the truth is the rule. 31.r3FcdIallT)cr MiXt… … Fig. 234 represents a plot of a railway line; in this plot the curve is repre-sented as a straight line, the radius of curvature being written in. This methodis sometimes adopted when it is desirable to confine the plot within a limitedspace upon the sheet, and it is convenient plotted thus…
