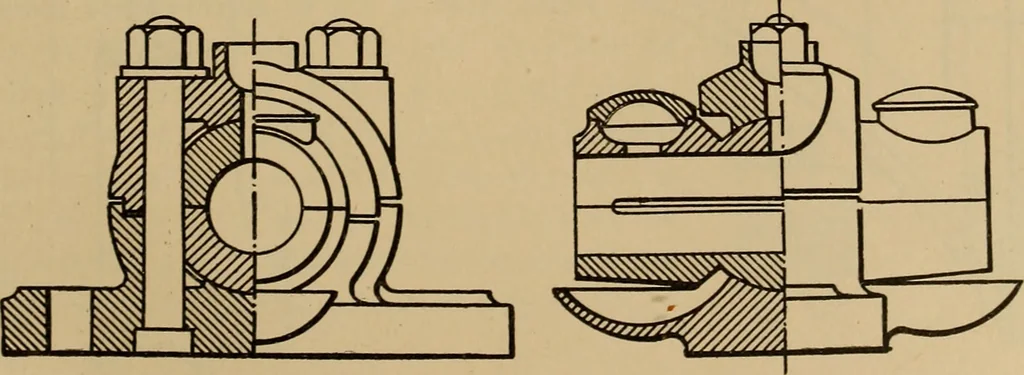

Fig. 577. Fig. 578. solid but melts when the bearing heats. The maximum pressure allowed is50 pounds per square inch, the diameter multiplied by the length of bearingor4D. … Fig. 579. Fig. 580. Another feature of the Sellers bearings is the spherical-shaped drip-pan tocatch the waste oil. By the distribution of the oil the metal of the shaft will 268 MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. not touch that of the box. Any metal can be used for the box; cast-iron is…
