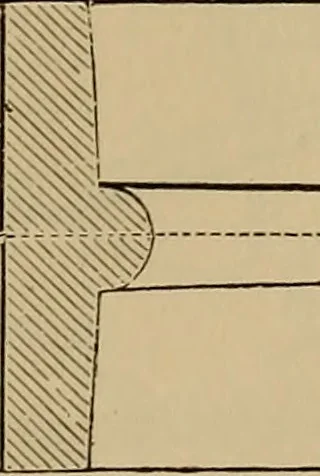

Fig. thickness of the hub is about -^ the diameter of the shaft; this proportion isalso used for the hubs of couplings ; the width of the arms from f to full diam-eter ; the thickness half the Avidth ; the thickness of the rim from I- to -J- thediameter; the length of hub the same as the width of…
Mechanical drawing
