Mechanical drawing; a treatise on the drawing of mechanical and machine details (1920)
Jones, Franklin Day, 1879-1967 · New York, The Industrial press; [etc., etc.] · leaf 258

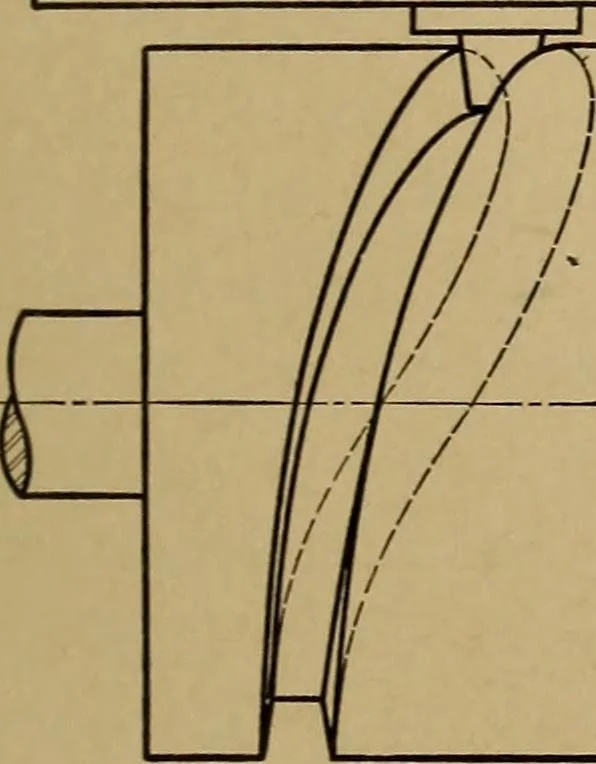

arying distance between therollers. The term, constant diameter cam, is sometimesapplied to this type. The follower in this example is slottedto clear the camshaft which acts as a guide. Another kind offollower is in the form of a rectangular yoke which surroundsthe cam; hence, the name yoke cam is…
Mechanical drawing
