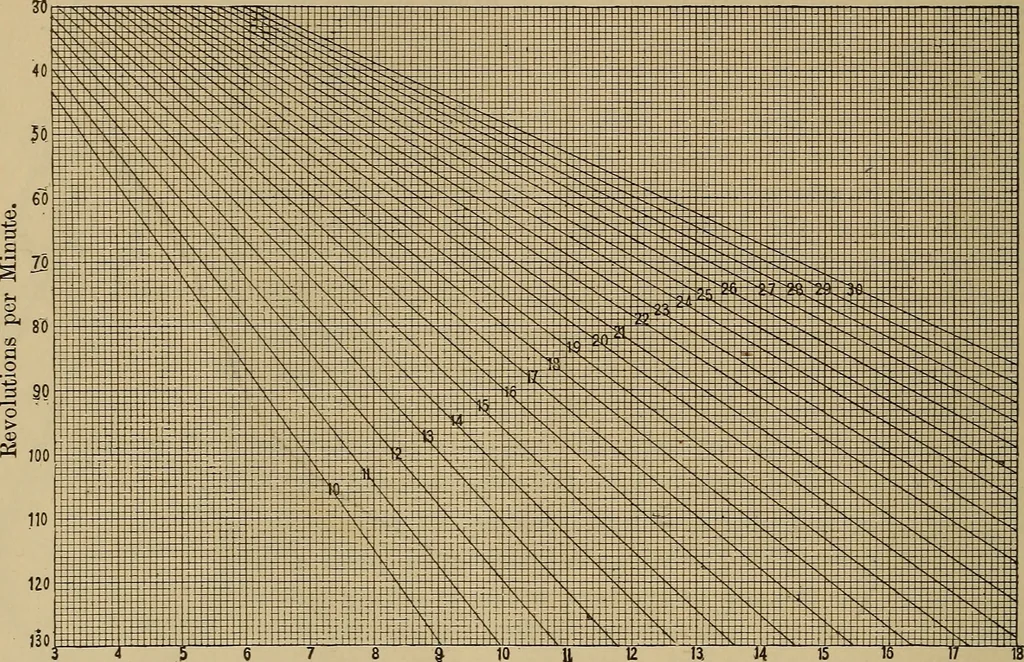

of shaft: The abscissa 120 cuts the diagonal 10 on the ordinate line 8J; -^^ = 12 width of belt. If the pulley 292 MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. were 12-foot instead of 10, it will be seen by the diagram that the intersection of diagonal would be at 10, and the width of belt —- = 10.… … » 10 uHorse-Power per Incli of Width.Fig. 652. 1 in width to transmit 1 horse power, and if the belt were triple, and runningwith the same velocity, it would transmit 3 horse power, which is a rule incommon use. The above rules are applicable to India rubber and canvas belts, which arelargely used.…
