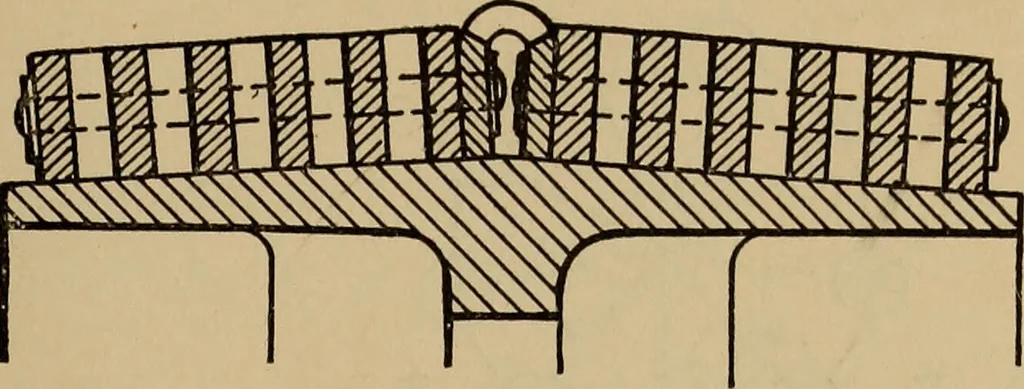

Fig. 668. Fig. 669. Fig. 670. The link belting is made with malleable iron links and detachable, so thatthe belt can be readily lengthened or shortened. The sprocket wheels aremachine finished to pitch. Figs. 66S, 669, and 670 are drawings of links of different forms. They are MACHINE DESIGN AND… … ^^^ made of all dimensions to suit the purposes and stresses required. At the usual speeds of leather belts, link belting is noisy and wears rapidly, but at moderate speeds—for conveyors of grain, clay, and the like—they are admirably adapted, and in such positions and conditions of speed can be…
