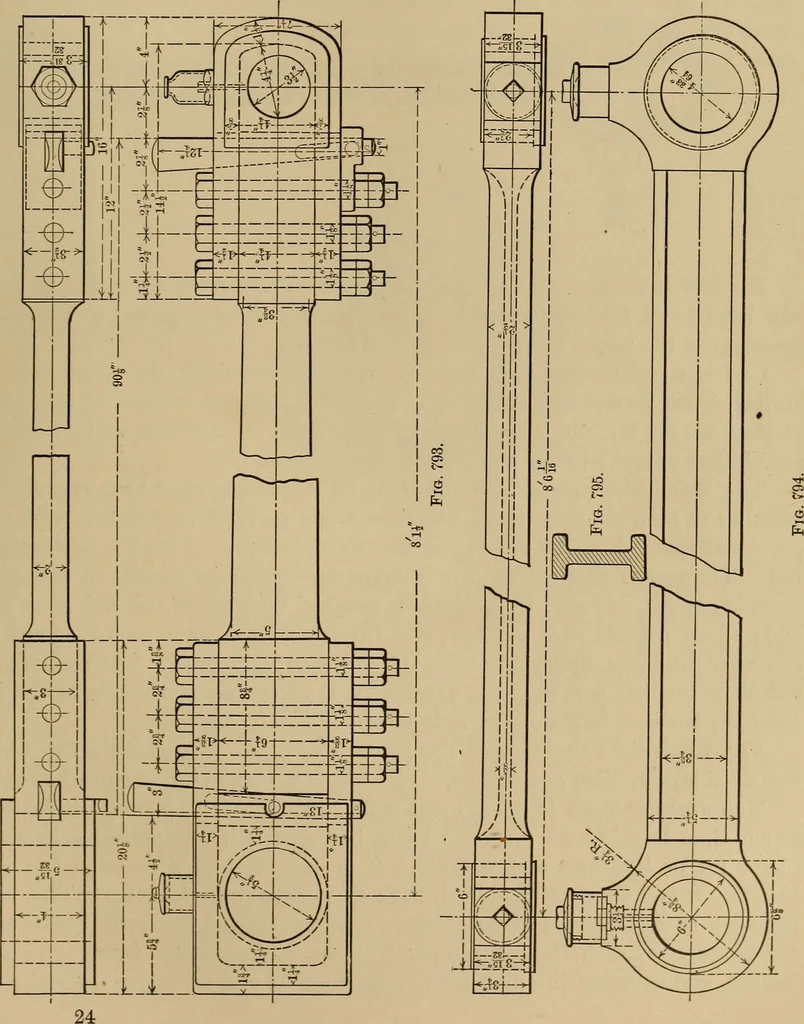

he connecting-rod on the scale; it is therefore shown broken,with the dimensions figured in. The sections of the two ends are drawn in onthe rods; the circular section A is the same as that of the piston-rod, and bothare represented in the conventional hatching of cast-iron, but it is of… … 354 MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. Figs. 793 and 794 are the sides and top elevations of the connecting- andcoupling-rods of the express locomotives of the New York Central and Hud-son Kiver Eailroad, designed by Mr. Buchanan, and built at the SchenectadyLocomotive Works, of which the…
