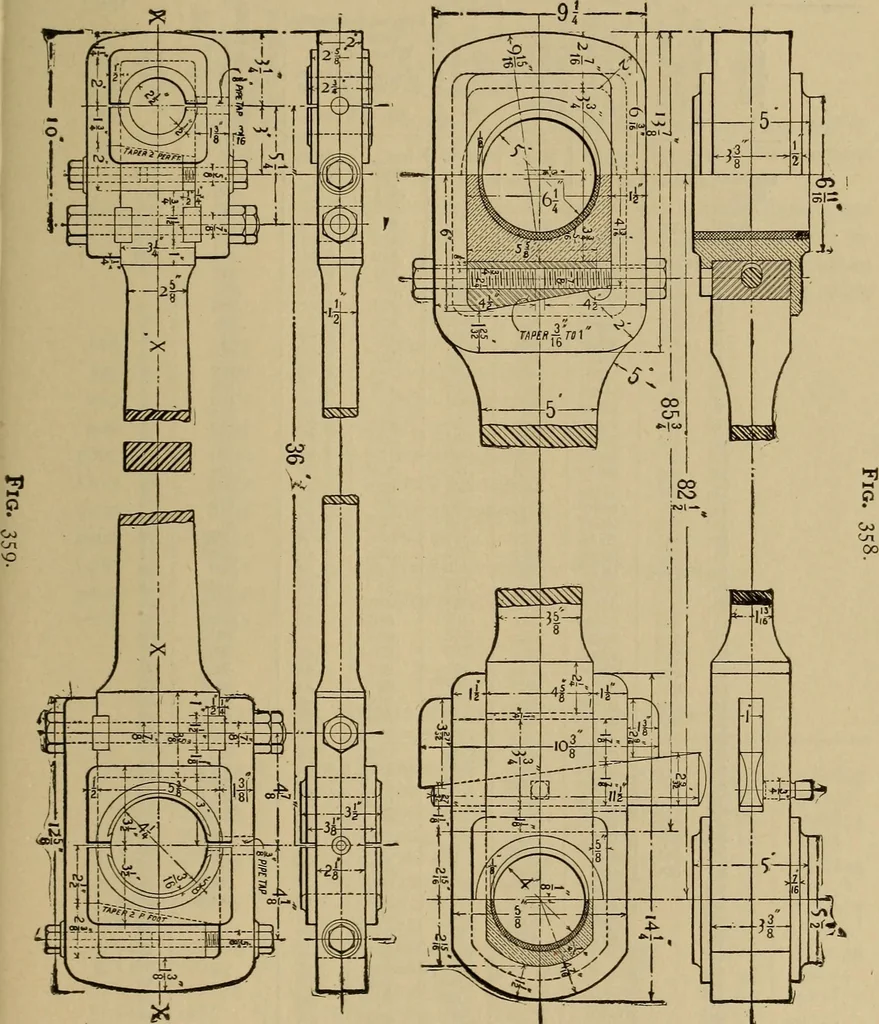

on-trols the adjustment for wear. Fig. 359 has strap ends front and back. Keys are in-serted between the straps and the rod to prevent the shear ofthe strap-bolts. The construction of this rod and the methodemployed to take up the wear are plainly shown in the figure.The Erie City Iron Works use… … 274 MECHANICAL DRAWING. TABLE 18. WIRE AND SHEET-METAL GAUGES COMPARED. *. it si* CO M ilg. ^ 02 Roeblings and Washburn & Moens Gauge. Stubs Steel Wire Gauge. (See also p. 29.) British Imperial Standard Wire Gauge. (Legal Standard in Great Britain since March 1,1884.) U. S. Standard Gauge…
