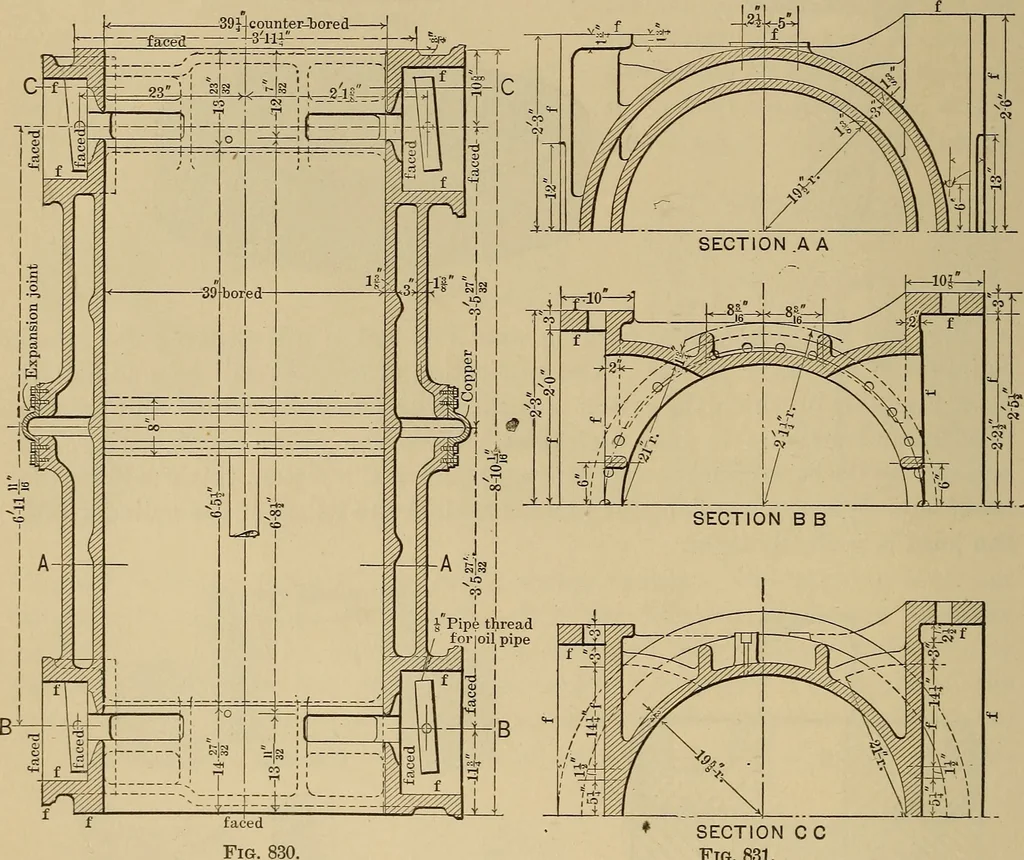

al sizes. Their depths are from 1 to 1-J-for diameters varying from 4 to 14, and the space occupied by the thicknessin the U from ^ to f. A filling of flat braided hemp is placed inside the Uto keep it tight when not under pressure. The packings are made by steepingthe leather in warm water,… … SECTION CCFig. 831. The outer cylinder forming the exterior shell of the steam-jacket is fastenedto the steam-cylinder, but is allowed to move under changes of temperature.In Figs. 830 and 831 are given longitudinal and transverse sections of a steam-cylinder with jacket, as constructed by E. D.…
