The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 363

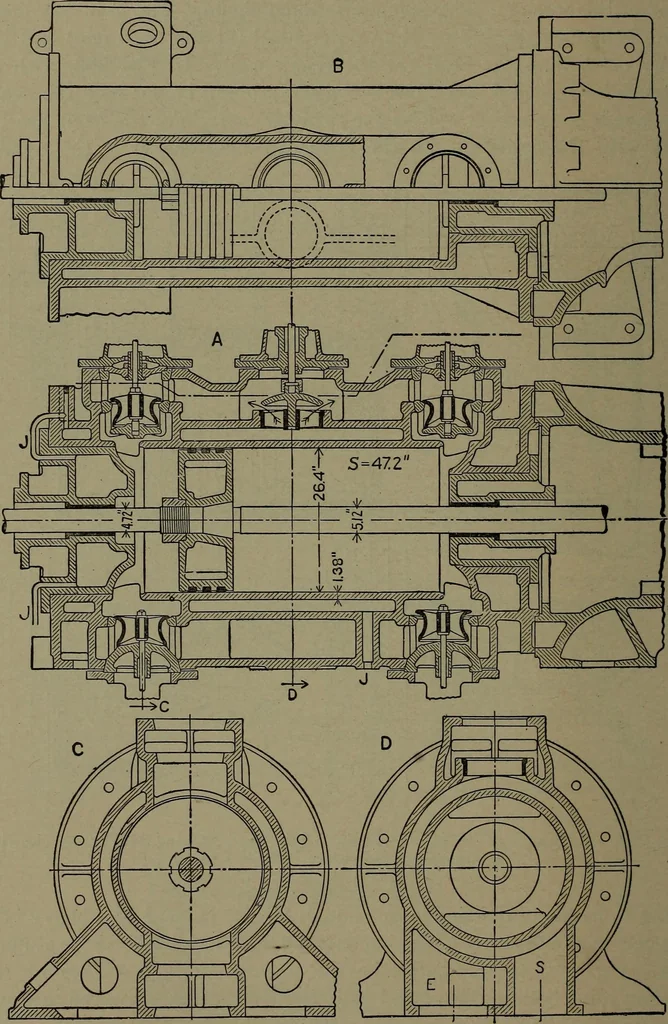

bor-ing bar, then close it by a bushing or small head which carries the stuffingbox. Fig. 200 shows distinctly the narrow contact surface of theground joint between head and cylinder; by concentrating the pressuredue to the bolts on this narrow, accurately-finished ring surface, tight-ness is… … Fig. 203. —Lift-valve Engine, German Design; high-pressure cylinder of 670 and1075 by 1200 mm. compound engine, with full steam jackets. Scale about 1 to30. § 36 (a)] CONSTRUCTION OF THE ENGINE. 347 Formation of Steam Jacket. —In Fig. 203 is shown a jacket spacecored in the main casting, a very…
Steam-engines · Steam-turbines
