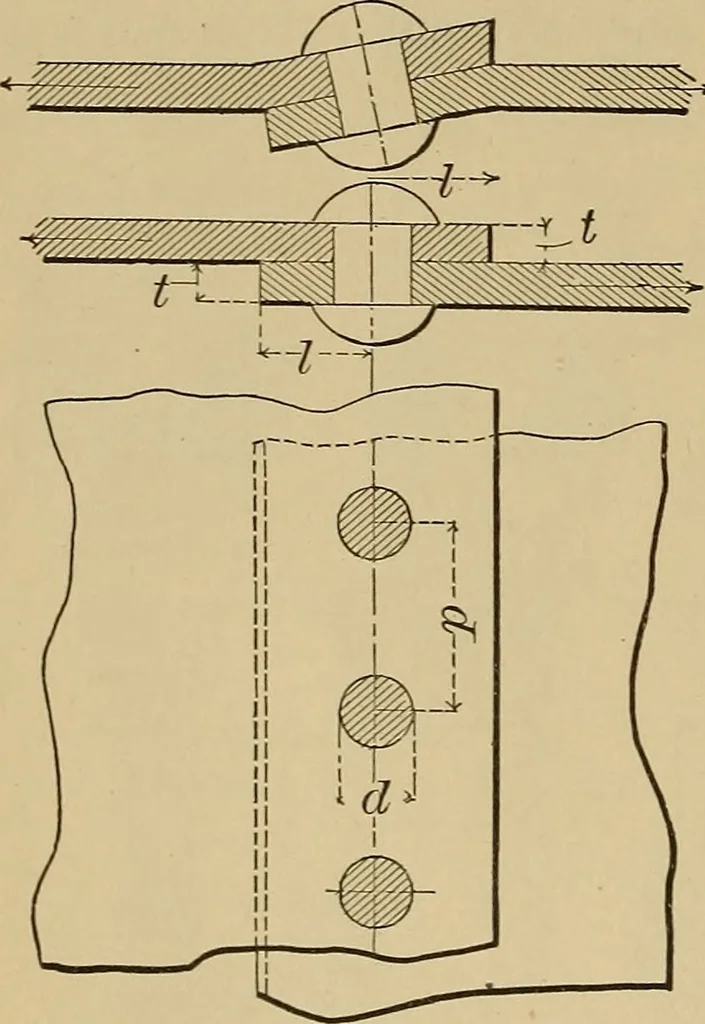

s about equal to the tenacity of wrought-ironplates; the shearing resistance of steel rivets isabout eight tenths the tenacity of steel jolates. Fig. 891 shows the connection of two platesby means of single-riveted lap-joint. Whenthe plates are arranged as shown in the lowersection, the tension in… … Fig. 891. IRON PLATES AND IRON RIVETS. STEEL PLATES AND STEEL RIVETS. Thickness of Plate. Diam. of rivet. Pitch. Diam. of rivet. Pitch. .1 2f ^* 2f 2. MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. 385 The eflSciency of the joint in the percentage of the strength of the plate isto be taken at the…
