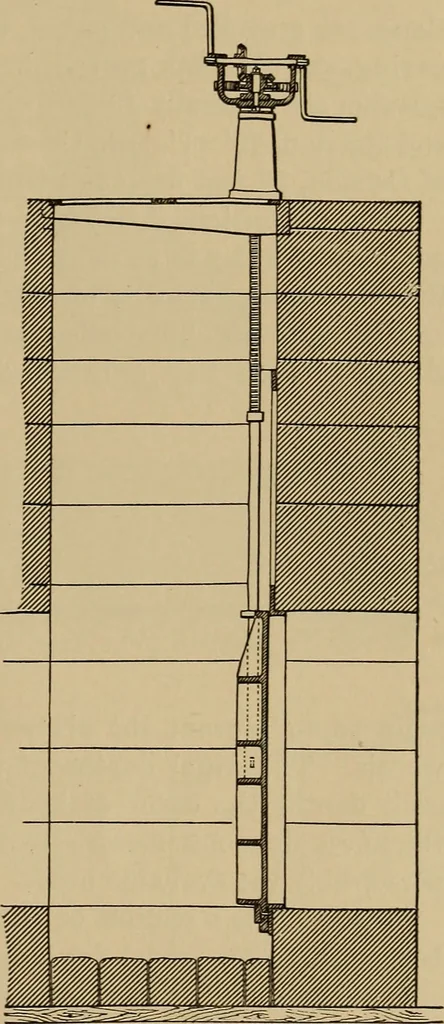

Fig. 1061. Fig. 1062. of the gate is H thick, the ribs 6 deep, the gate-stems 2^ diameter. Thenuts by which the gates are raised are geared together, and actuated by adouble crank. The gates and guides are faced with brass, about -^ thick. Similar gates are very common, plates of casf-iron…
