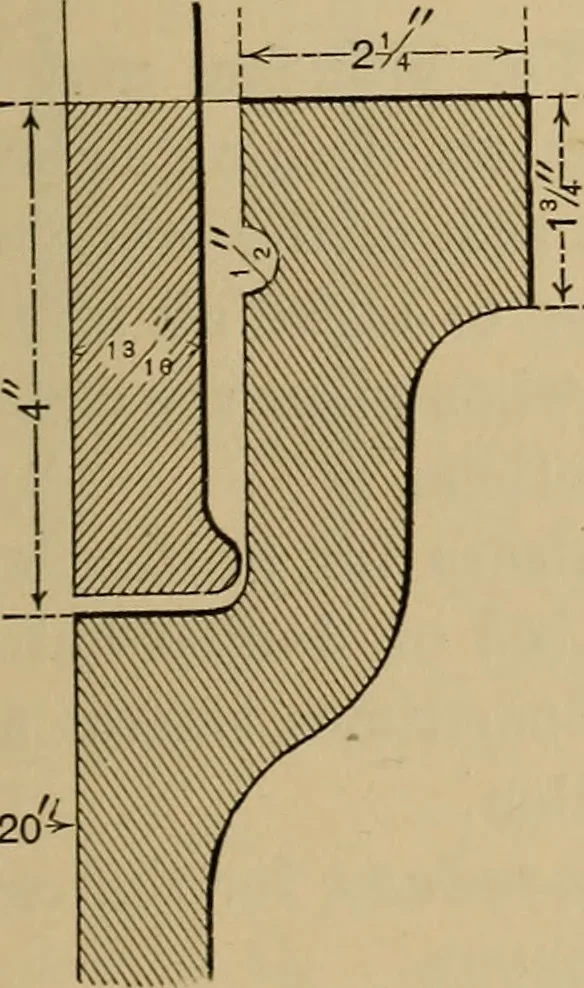

Fig. 1086. Fig. 1087. missible for tapping, and if the pipe is not of uniform thickness, is to be putthe thickest side up for this purpose. The diameters given in the table are such as can-2H H be found in stock, but other sizes will be made to … Fig. 1088. Diameter. Thick-ness. Weight perfoot laid. Lead-jointweight. Safe, feethead. 4 0-42 19-7 4 1,609 6 0-47 32-6 7 1,200 8 0-47 42-4 10 900 12 0-61 82-2 16 800 16 0-67 119-7 23 680 20 0-75 164-7 . 31 600 24 0-80 210-3 40 520 30 0-98 320-0 57 520 36 1-15 450-0 75 500 48 1-44 757-0 120 480…
