Mechanical drawing. Elementary and advanced (1910)
Reid, John S. (John Simpson), 1856- · New York, J. Wiley & sons; [etc, etc.] · leaf 117

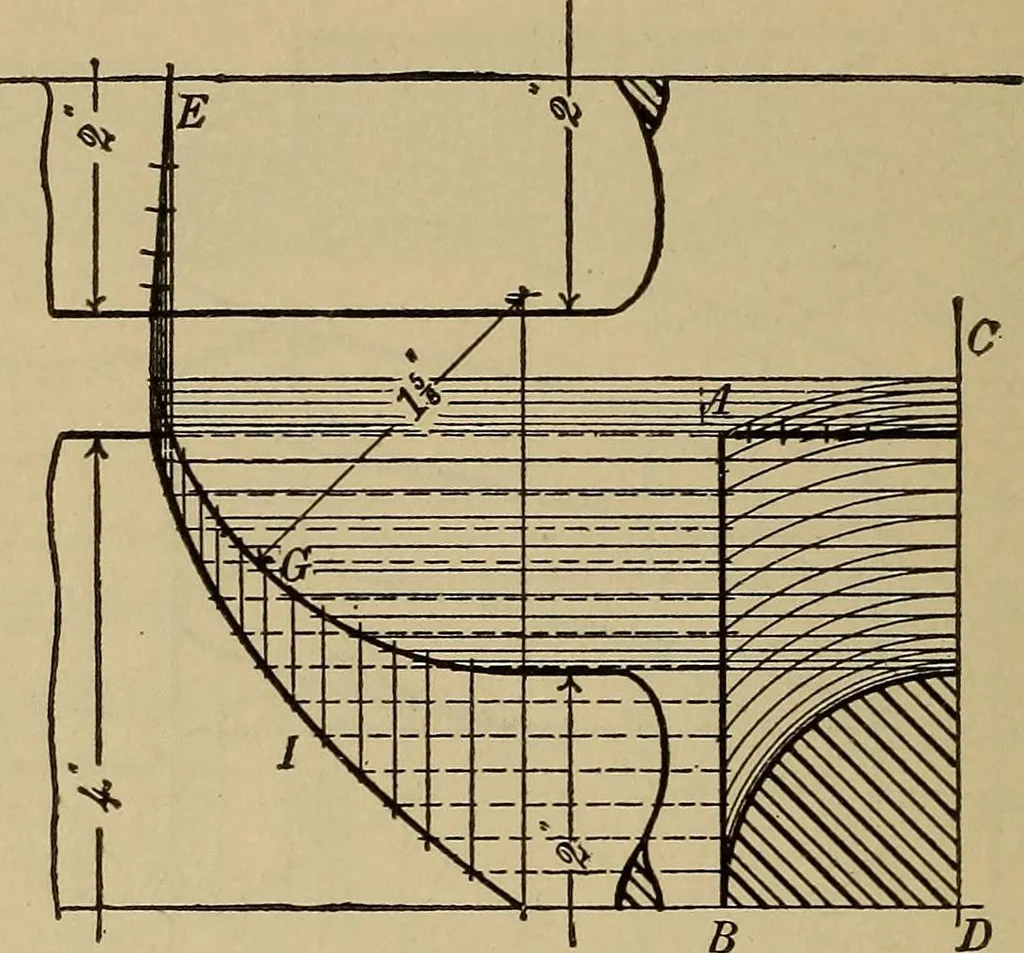

diam. and I. pitch and also a section of its nut. The method of construction is the same as for the lastproblem, and-is illustrated by Fig. 138. PROB. 22.—To draw the projections of a square doublethreaded screw of 3 diam. and 2 pitch, and also a section ofits nut. 102 MECHANICAL DRAWING. The… … Fig. 140.Figs. 140, 141, and 142 show examples of engine con-necting rod ends where the curve / is formed by the inter- tH-tt d:
