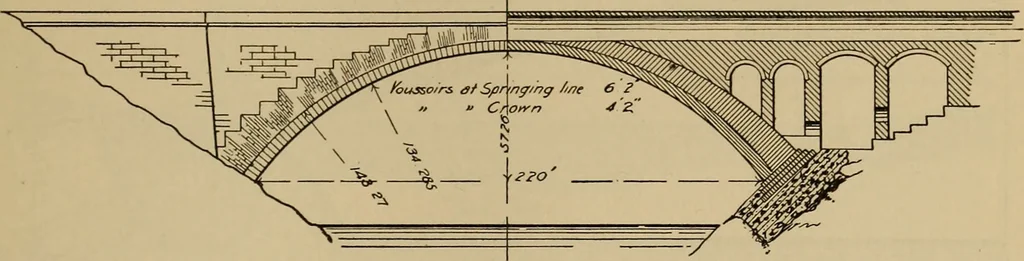

braces 10 X 10, and theshorter side-braces 8 X 8 ; the bolts, single, 1^ diameter. ENGINEERING DRAWING. 521 The bridge was constructed after the designs and under the direction ofCharles C. Smith, C. E., Chief Engineer of the St. Paul, Minneapolis andManitoba Railway, and is an example of a very… … Fig. 1245. Fig. 1245 is a half-elevation and half-section of the Cabin John Bridge usedfor supporting the Potomac conduit on the line of supply to the city of Wash-ington. Location. Manchester and Birmingham Railroad. (( (( u n London and Brighton Railroad Blackwall Great Western Railroad Chestnut…
