The technic of mechanical drafting a practical guide to neat, correct, and legible drawing (1904)
Reinhardt, Chas. William (Charles William), b. 1858 · New York, The Engineering News Pub. Co. · leaf 24

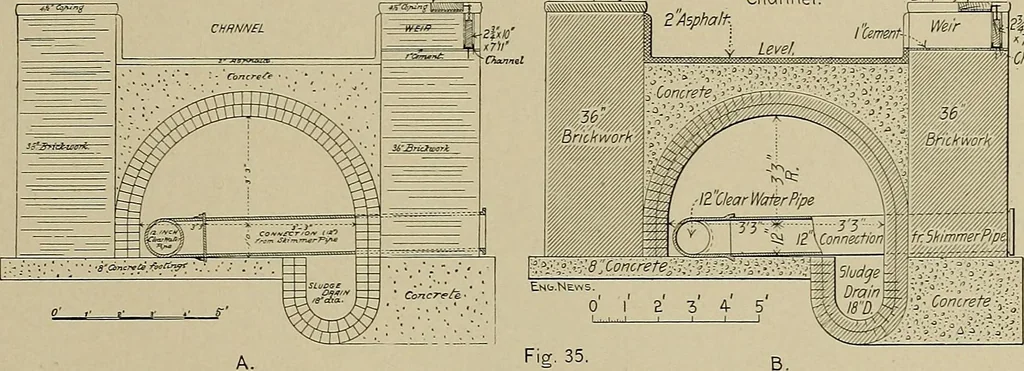

inishing a section of any object the draftsmanvery properly should assume the near portion cut off by theplane of section as being actually detached; the far portionthus remaining should be treated solely and faithfully under thisassumption, hatchiug all such parts as are cut by the plane… … assumed. An almost pathetic instance of erring in that respect ispresented in ourFig. 35 A, andthe proper treat-ment of the partsinvolved is de-monstrated in B alongside. Before intro-ducing the stand-ards of sectionlining defined be-low, it may hestated, that incases where no mistakes regarding…
Mechanical drawing
