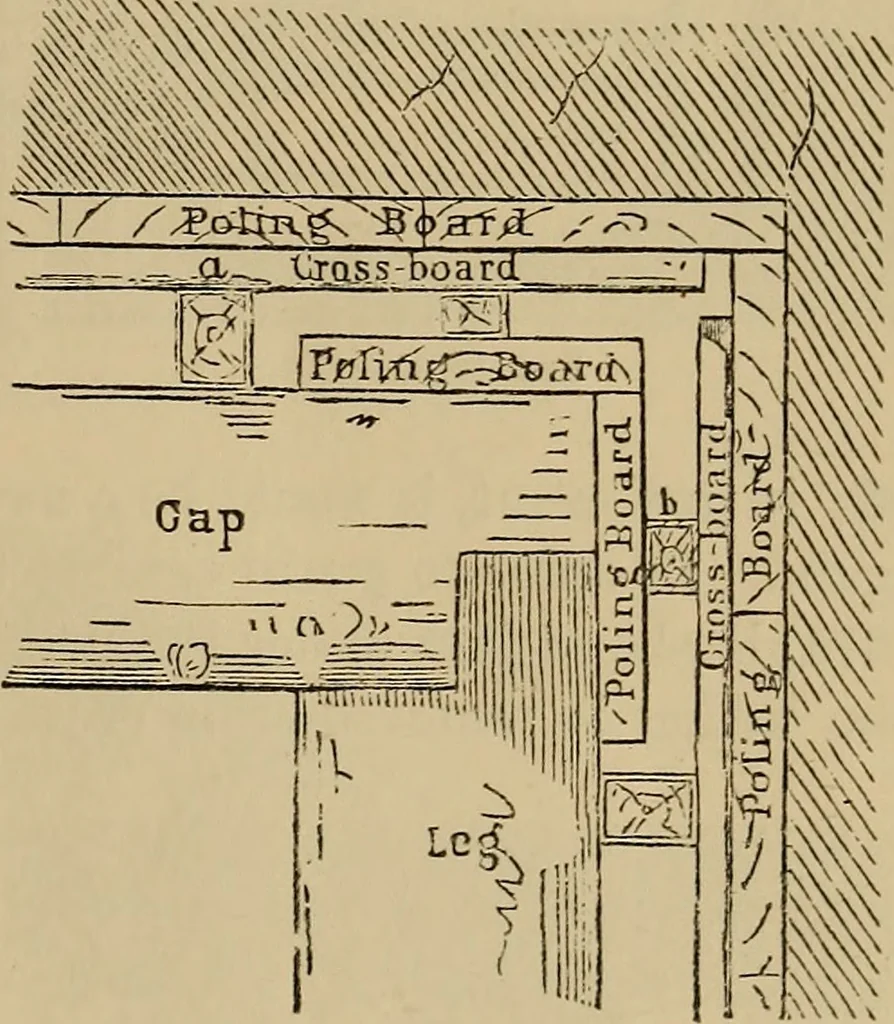

Fin. 1273. Fig. 1274. Figs. 1273 to 1278 illustrate the principles of timbering applied to driving agallery through running material. Figs. 1273 and 1274 are parts of the con-struction on a large scale, with the technical names of the parts. Each frame iscalled a timber-set. Suppose a leading set…
