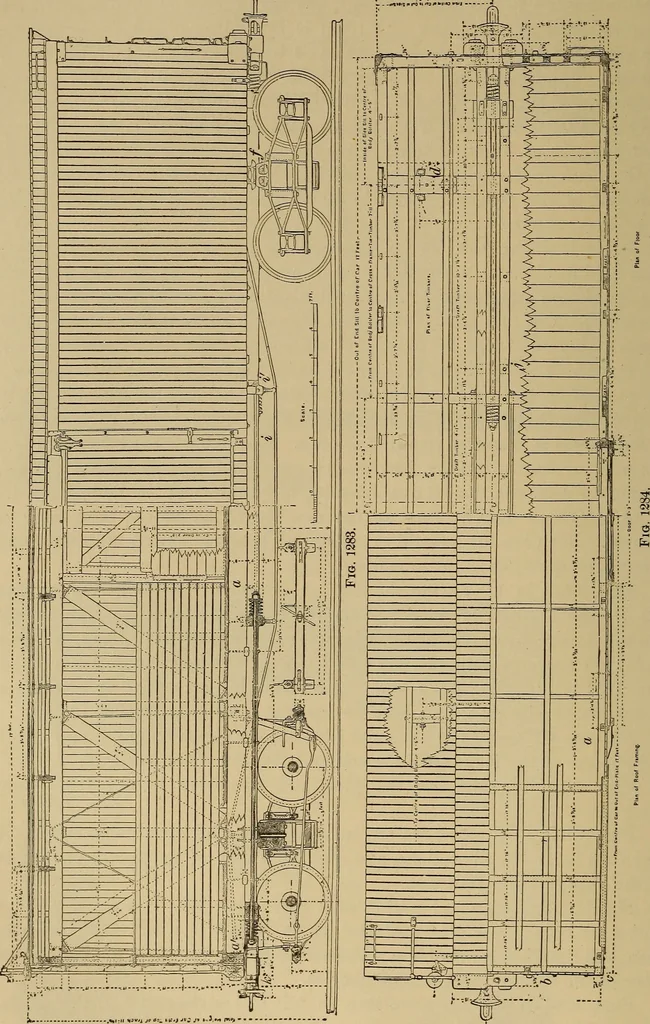

wo—the body centre-plate and the truck centre-plate. The centre-pin or king-bolt, not shown, carriesnone of the strain except in emergencies. Figs. 1296 to 1299 are elevations, in full and parts, and Fig. 1300 a plan ofthe trucks of the above car. In the figures, both of standard box and passenger… … ENGINEERING DRAWING. 541
