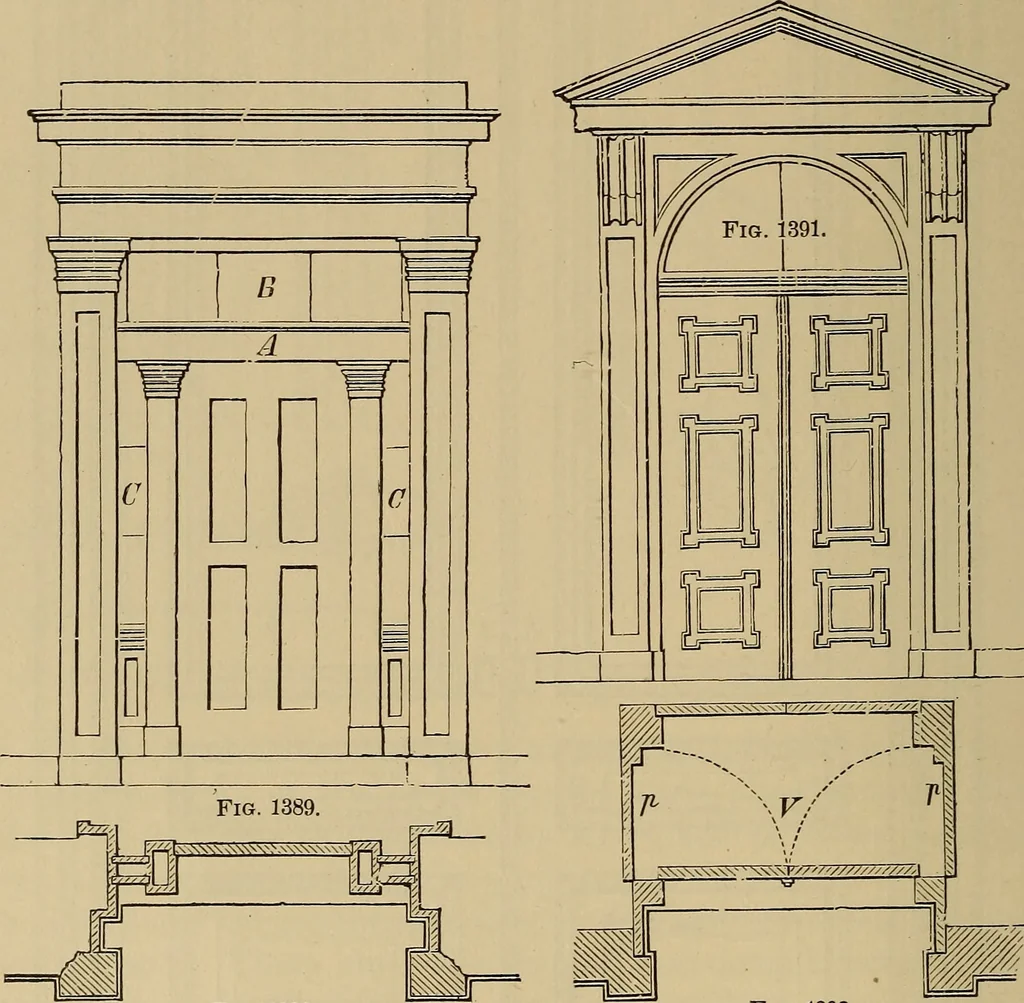

form in mechanics shops, are seldom used ; the third, often usedfor access to balconies or between rooms, are called casements, orFrench windows. Figs. 1393 and 1394 are the outside elevation and horizontalsection of one half of a common … Fig. 1390. Fig. 1392. box-frame, and Fig. 1395 a vertical section of the same in a woodenframe house. S is the sill of-the sash-frame, W the frame-sill,with a wash to discharge the water, B the bottom rail of the sash,M the meeting rails, T the top rail, H the head of the sash-frame,and A the…
Mechanical drawing
