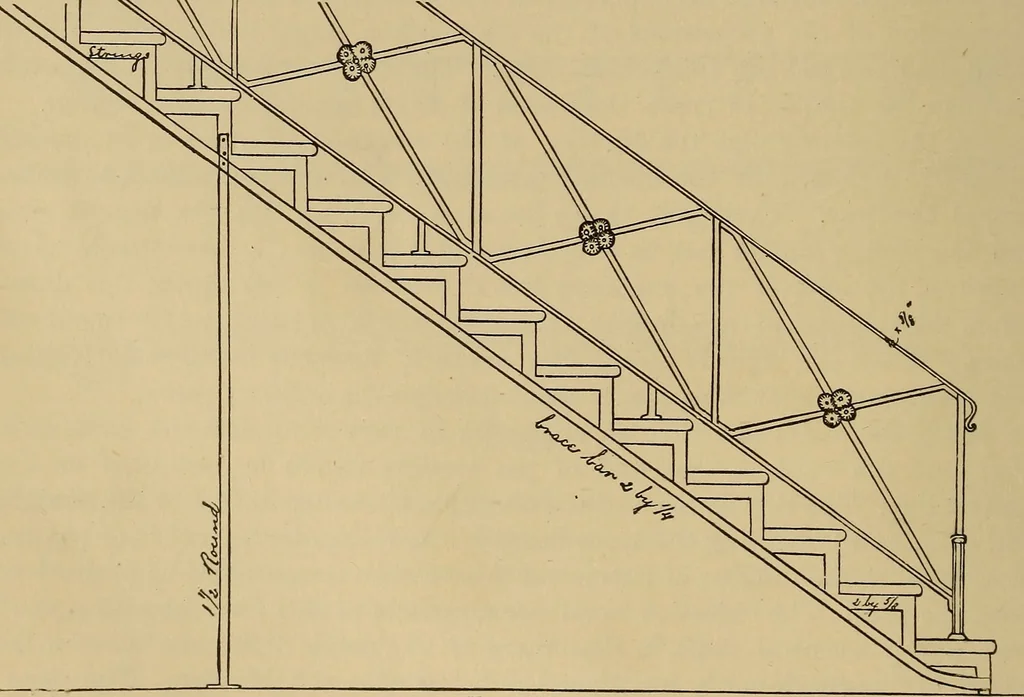

Fig. 1411. Fig. 1412. Fig. 1413. for its construction. It will follow the line of stair-nosing, and where there arechanges of pitch they are made to connect by curves tangent to these pitches,except where the landings are square, and newels set at the head of the land- … FtG. 1414. ings, le rail is framed into the newel. At the bottom the rail is curved to thehorizontal, when it comes into or upon top of the newel. Balusters are of great variety—usually turned forms—attached to the treads ARCHITECTURAL COXSTRUCTION. by dovetails, covered with the returned nosing,…
