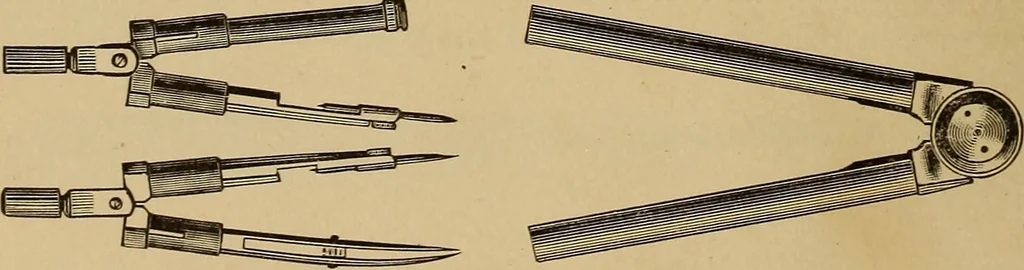

Fig. 136. Fig. 137 Fig. 138. of distances the plain dividers are convenient, but for ready and close ad-justment the hair dividers (Fig. 138) are most suitable. The only differenceis that in the hair dividers one of the points is attached to the body by a … Fig. 139. spring, and by means of the screw h it can be moved a very little toward orfrom the fixed point more accurately than by closing or opening the dividers.In dividing a line into equal parts especially, it enables one to divide the excessor deficit readily. DRAWING INSTRUMENTS. 45 For…
