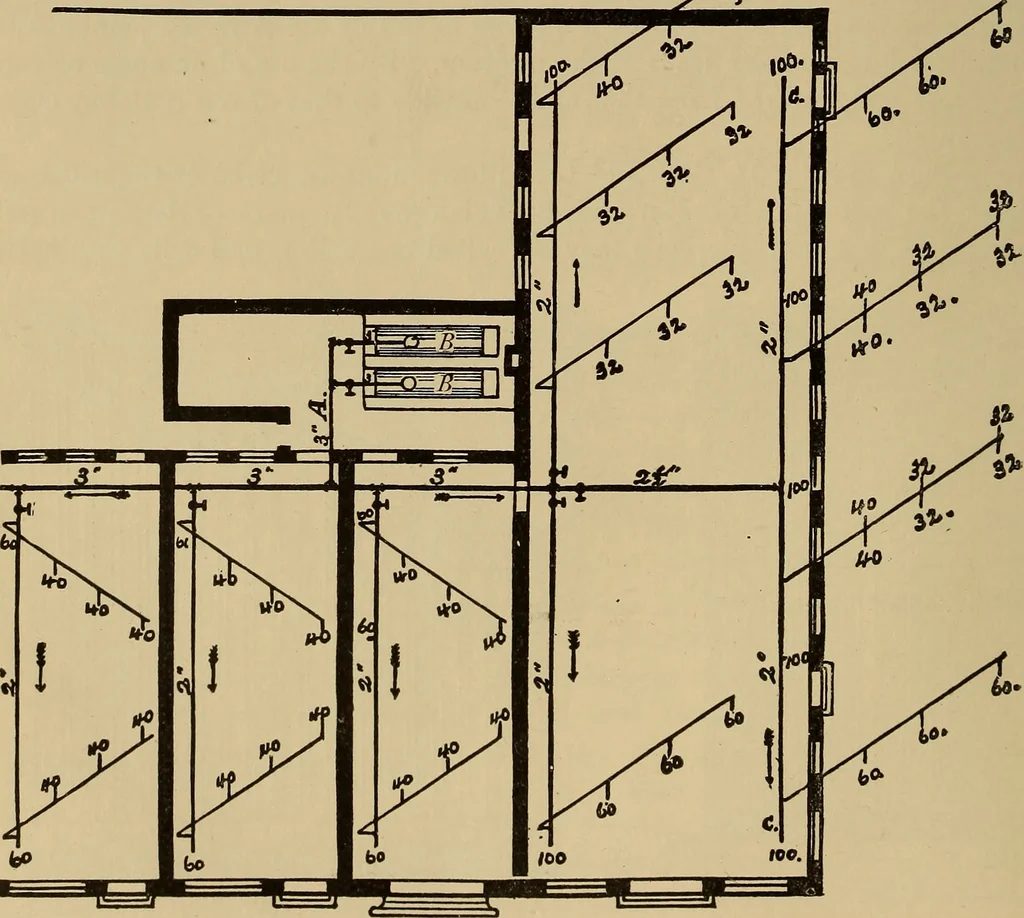

Fig. 1544. … Fig. 1545. ARCHITECTURAL CONSTRUCTION. 649 Fig. 1545 is the plan of a portion of a large building heated by steam. B Bare two boilers, either of which would be sufficient for the purpose; the steammains are shown by black lines following those of the building, with the sizesmarked upon them; the…
