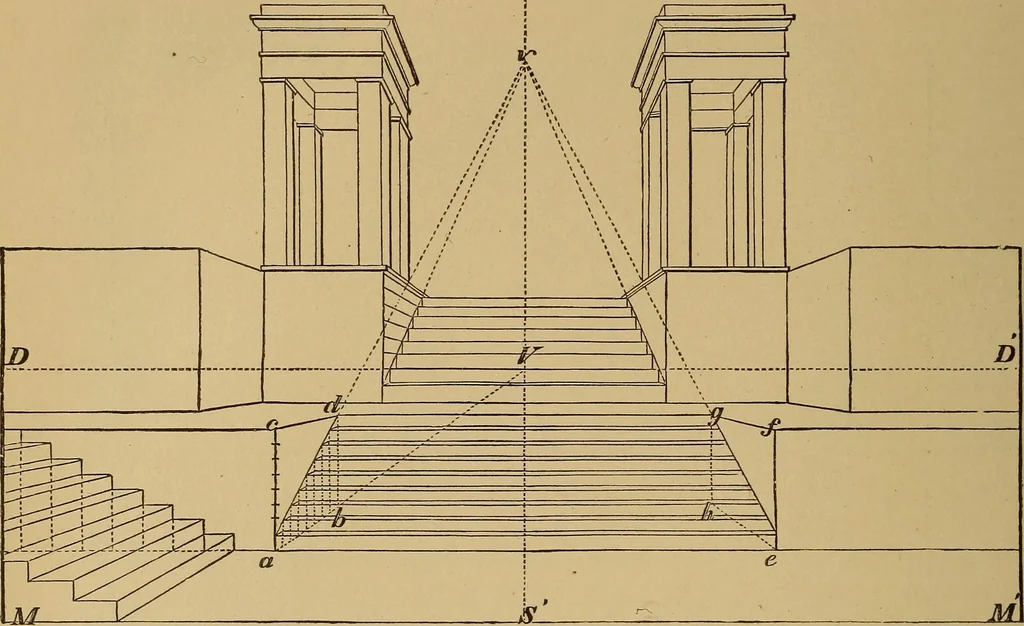

form the rise and the other the tread of the steps. From the top of the firststep to the top of the upper continue a line a d^ till it meets the perpendicularS V prolonged in v; this line will be the inclination or pitch of the stairs ; ifthrough the top of the step at the other extremity a similar… … Fig. 1803. As the pitch lines of both sides of the stairs meet the central vertical in thesame point, in like manner v will be the vanishing point of all lines having asimilar inclination to the plane of the picture. The projection of the otherflight of stairs will be easily understood from the…
