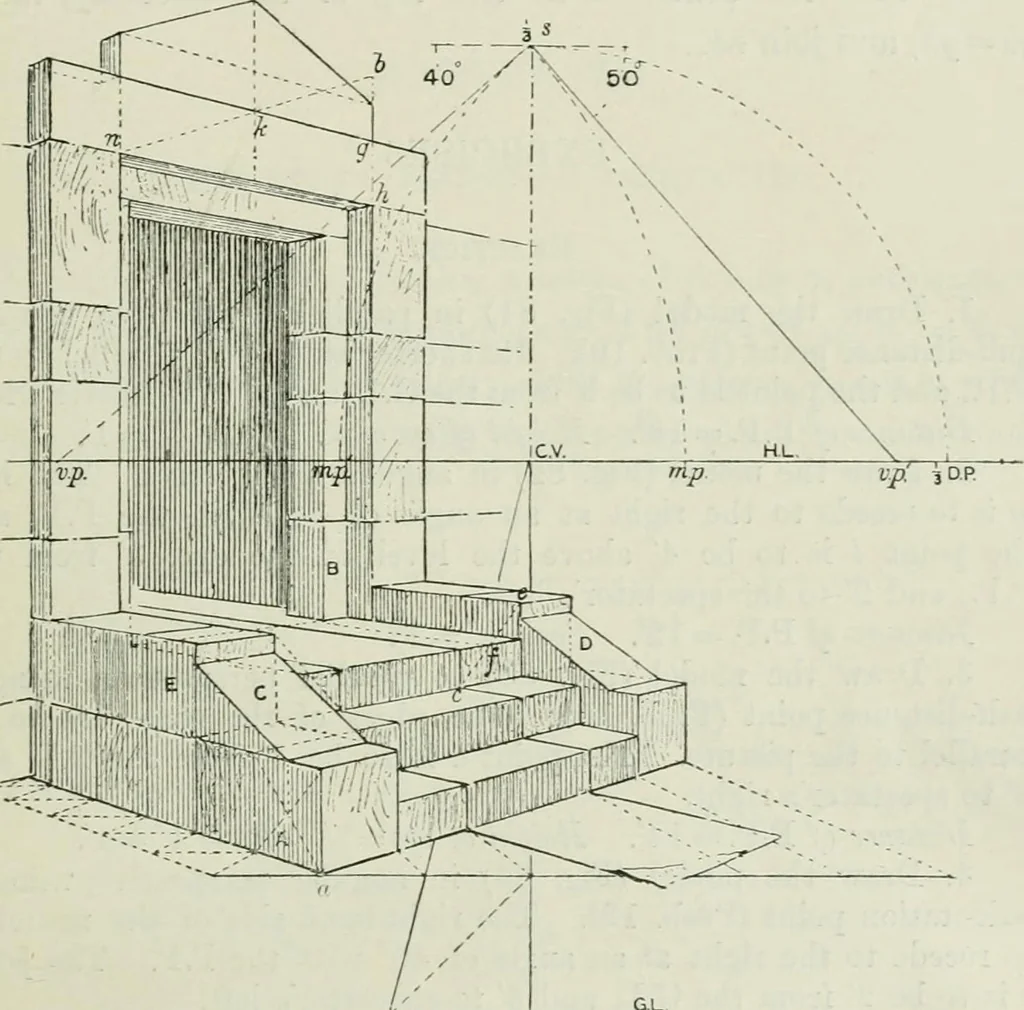

lars at the front corners, x and t, each equal to vw,and complete the block, as shown. Fig. 83 represents a doorway with steps. The ^jrincijial MODELS FOR PRACTICE 3 dimensions of the blocks are 2, 1, and h; the carpet is 2 wide.The working points are found by means of J station point (Prob.13).… … Y\K- S3 This model is a development of Prob. 13, and two methodsof finding the receding -widths have been shown, as explainedin that problem. The edges of the sloping surfaces C and D are found asfollows : Let C intersect block A half a foot from its front, andblock E a quarter of its height from…
