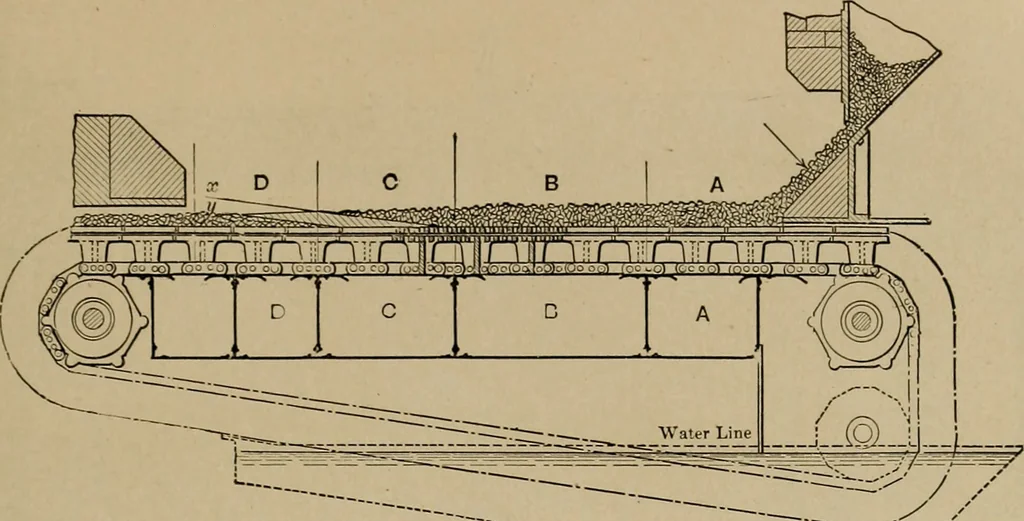

In the WilTcinson stoker the coal is fed mechanically through an inclined pipe on tothe dead plate P and slides down upon the bars, which are hollow^ and set at an angle.The top of the bars is stepped, and ^w?/6re-shaped openings about J x 3 inches are pro-vided in each riser. The bars are carried… … The Coxe stoTcer consists of a travelling grate Avitli fire on its upper surface. Thecoal is fed by the motion of the grate at the front. There are four blast compartments,A, B, C, D, under the fire connected by dampers. The sides of the furnace are pro-tected by wrought-iron water backs, through…
