Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 652

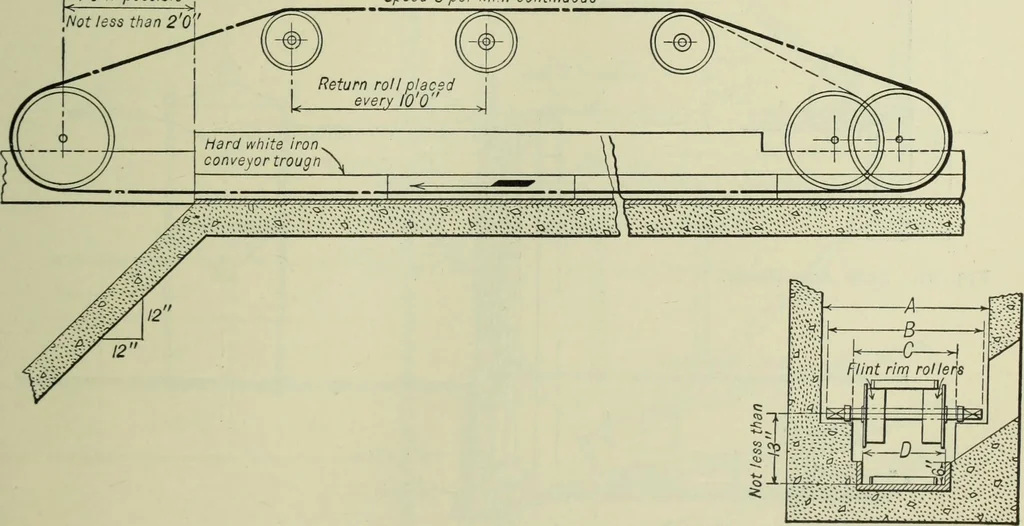

Fig. 19. Ash Conveyor. conveyor. An 8-inch conveyor of this type will handle 6 to 8 tons of ashes per hour with asteam consumption of 1,800 to 2,400 lb. high pressure steam per hour. The maintenance cost averages from one to one and one-half cents per ton of ashes handled.The cost of installation,… … Fig. 20. Ash Conveyor. 600 POWER PLANTS AND REFRIGERATION TABLE 10. (See Fig. 20)DIMENSIONS AND CAPACITIES OF DRAG-CHAIN ASH CONVEYORS A B C D Capacityin Tonsper Hour 2 1%2 1%2 4%2 1W2 11 23 U 23 H 2 2H 2 5H 2 9 133/4 13%. 16%19 K23 10 M10 H 13 K1619 M 1% l342^2 %3H
Building · Heating · Ventilation
