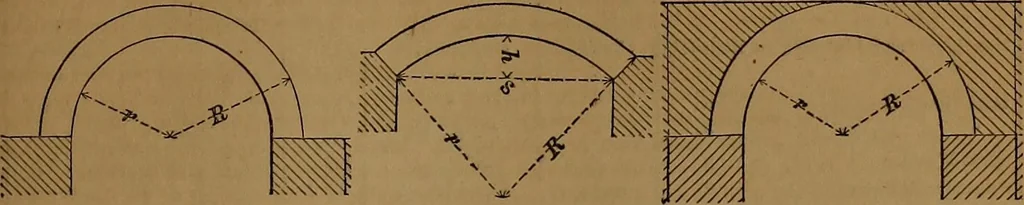

S. 207 the depth at the crown the formula d = ,07 r + 1 foot, in which formula r is the greatest radius ofcurvature of the intrados. This formula is applicable to arches less than fifty feet radius ; hut beyondthis it gives greater dimensions than in ordinary practice. In order to facilitate… … Fig. 620. Fig. 621. Fig. 622. To find the thickness of abutment necessary to support the thrust of the arch, multiply the co-efficientfound in the table for the particular case by 3.8, and the square root of the product multiplied by theradius, r, of the intrados, will give the extreme thickness of…
