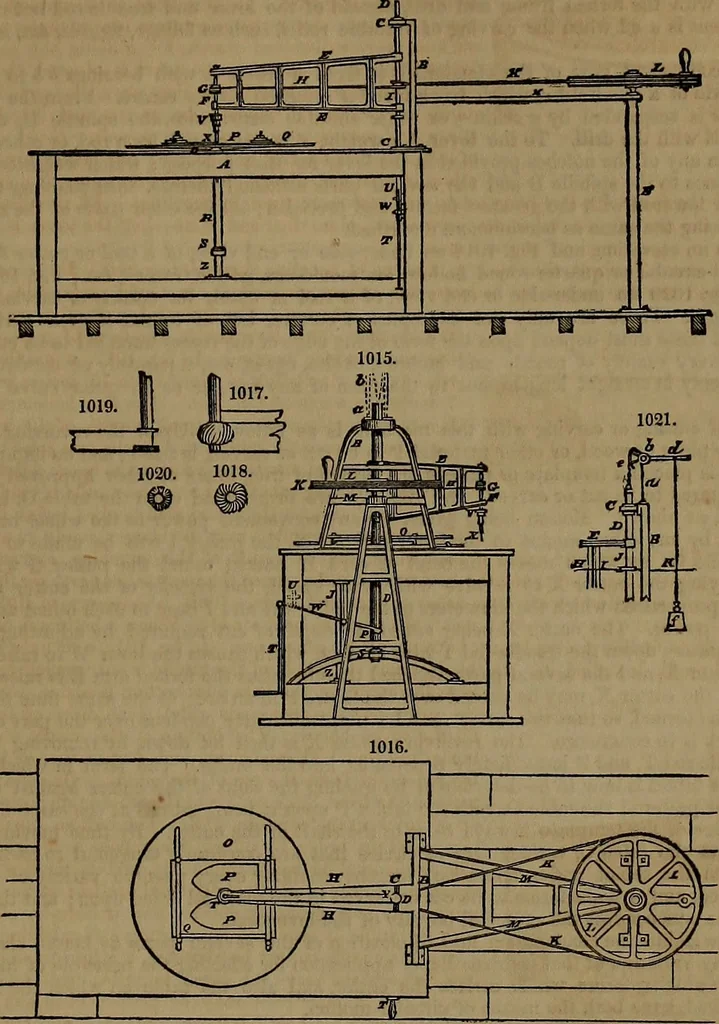

vingSubstances to be applied for Inlaying and other purposes.—this invention consists in certain improvedconstructions or arrangements of machinery, having a revolving cutter, by means of which, in conjunc-tion -with a moveable table, tablets of wood and other materials can be cut away, carved,… … Fig. 1014 represents a side elevation; Fig. 1015, an end elevation; and Fig. 1016, a horizontal viewof the machinery. A A is a bench or table, for supporting the several parts of the machine; B B is aetandard or bracket^frame, firmly fixed to the said bench; which frame is provided with…
