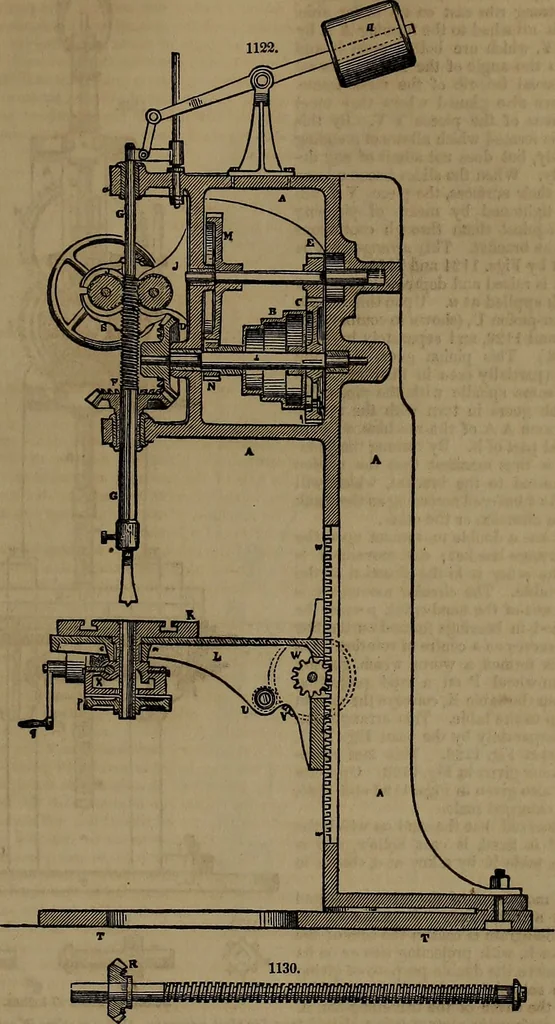

a, and is thus guided vertically in ascending and descending. (In thedrawings it is shown at the lowest limit of its travel.) To the top of the drill-spindle is attached the back-weight H by a jointed lever and guide link, whichembraces the top of the spindle and moves upon a vertical guide-rod,… … Scale.—12 feet=7 inches. The drill-spindle is itself screwed towards the middle of its length; it is there embraced by twoscrew-wheels J J between which it turns, and which serve the purpose of a nut to feed down the spindlein the operation of drilling, by an arrangement which will presently be…
