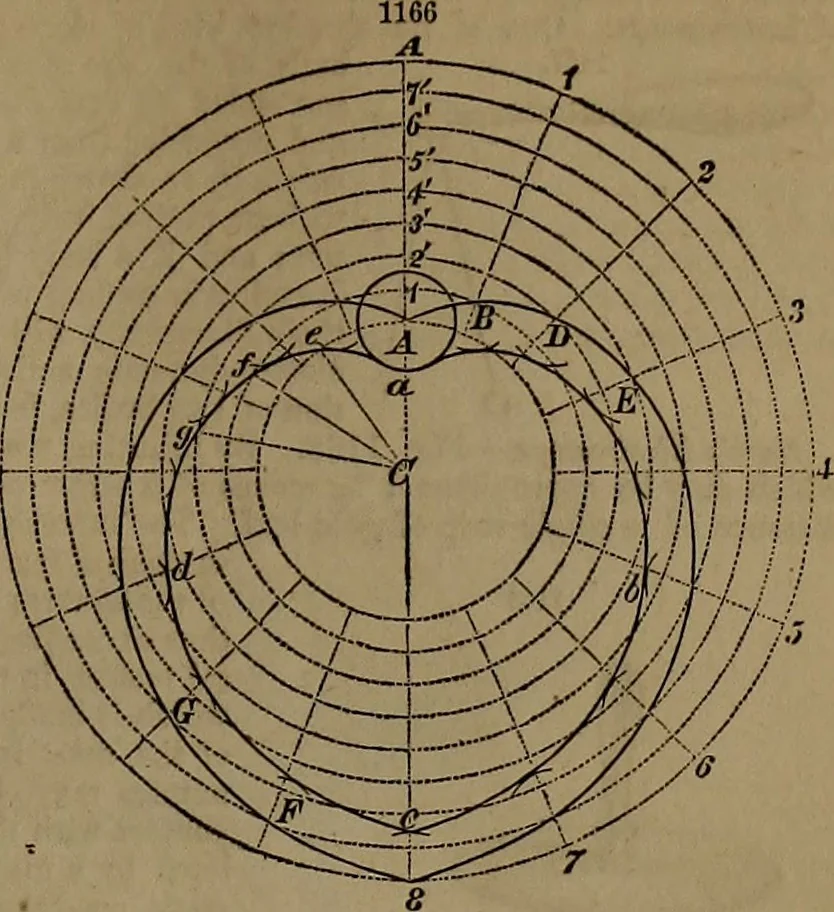

e axis or centre of rotation upon which the eccentric is fixed, and which is supposedto revolve uniformly; and let A A be the distance which the point A is required to traverse during ahalf revolution of the eccentric. From the centre C, with radii respectively equal to C A and C Afdescribe two… … ber of equal parts as are contained in the semicircle (that is, into 8 in the example now before us), andthrough all the points 1, 2, 3, Ac, draw circles concentric with the former; the points of their inter-section B, C, E, &c, with the respective radii, C 1, C 2, C 3, <fec, are points in…
