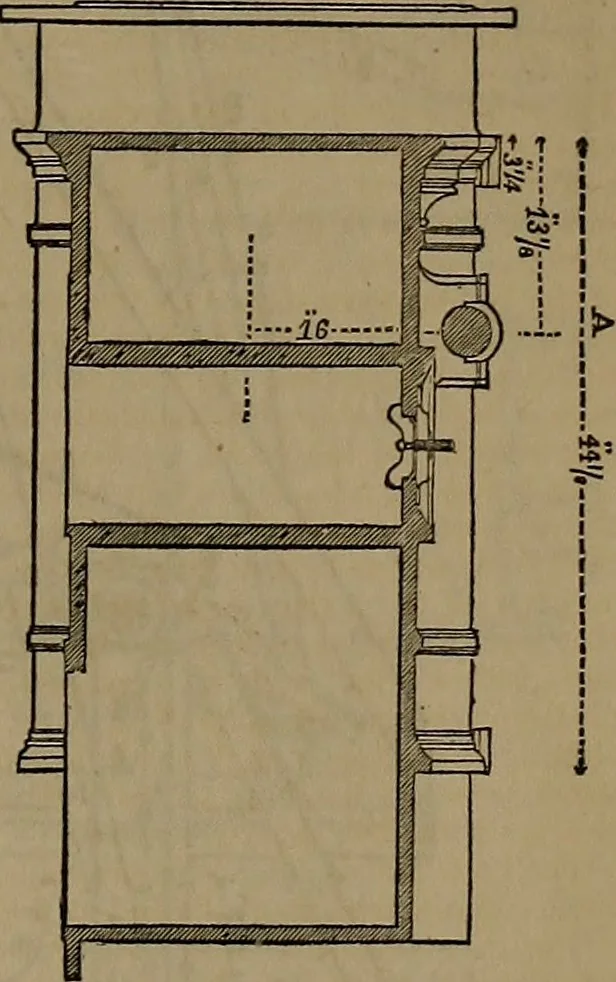

ngine much less laborious than without it; and by using the balance-valves in-stead of the ordinary poppet-valves, a very moderate degree of manual force is requisite to work the engine. Fig. 1511 is a side elevation of the engine. Fig. 1512 is an end elevation, exhibiting the steam-chests,the… … 576 ENGINE, VARIETIES OF THE STEAM. the condenser ■with the air-pump, and tho opening by which the foot-valve is introduced to its place. Fig- 1516 is a transverse section of the steam-chests, showing the arrangement of the balance-valves. Fig. 1517 is a plan of Che steam-chest, and of the cylinder…
