Appleton's dictionary of machines, mechanics, engine-work, and engineering (1861)
Appleton, firm, publishers, New York. (1852, D. Appleton & Co.) · New York : D. Appleton · leaf 751

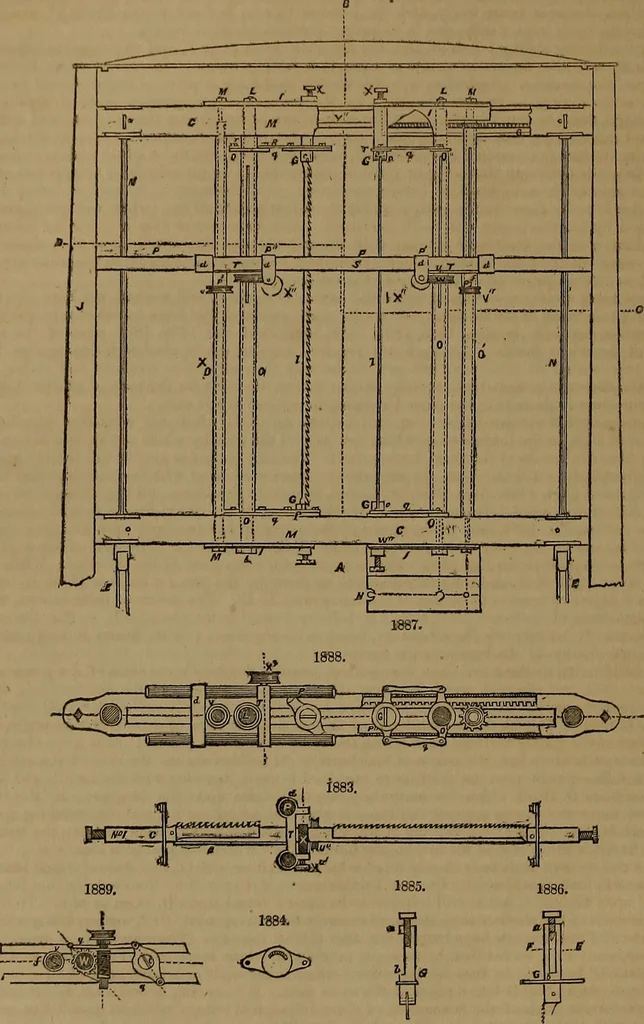

it, W is a worm-wheel which is attached to, or formed in one piece with the brass U, and gcers mtcwn endless screw X, upon the end of which there is :> nand-wh.ee! X, so that the attendant may be-enabled, through the intervention of the endless screw X, the worm-wheel W, the hollow shaft 0,… … When the saw has been inclined towards either side of the sawgate (by means of the apparatusbefore described) during the operation of cutting a log or block of wood, the regular feeding in of thewood takes place by the advance of the travelling bed under the sawgate. The saw would, therefore,very…
Mechanical engineering
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
