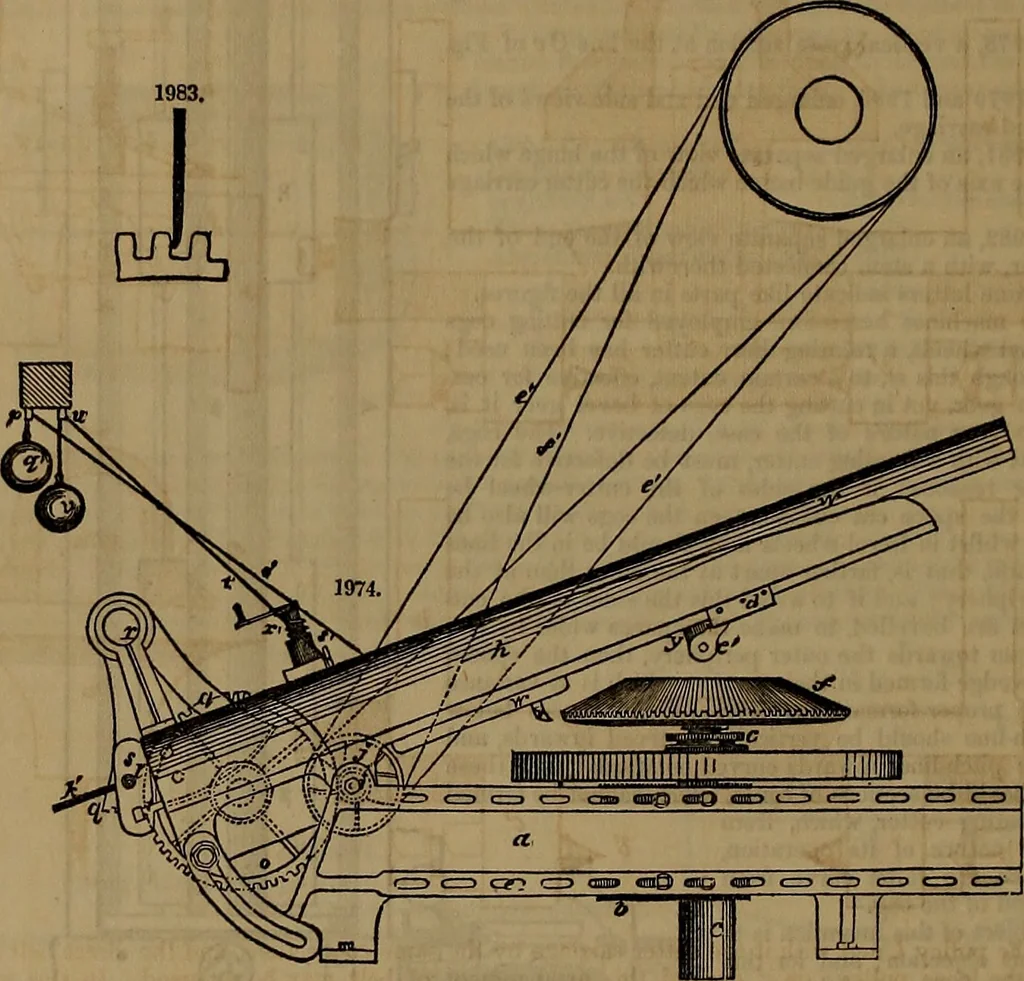

rests against the guide,and so connected, either with the guide-bar or some other part of the machinery, that at the time of thecutting motion it will move forward, that its bevelled surface may be brought m contact with the guideand give a lateral motion to the guide-bar, to relieve the cutter… … In the accompanying figures, a represents the main frame of the machine, to the inside of which isadapted a frame 6 that carries the spindle c of an index-plate, made in the usual manner. This frame6 is secured to the main frame by the bolts dd that pass through elongated holes ee in the side…
