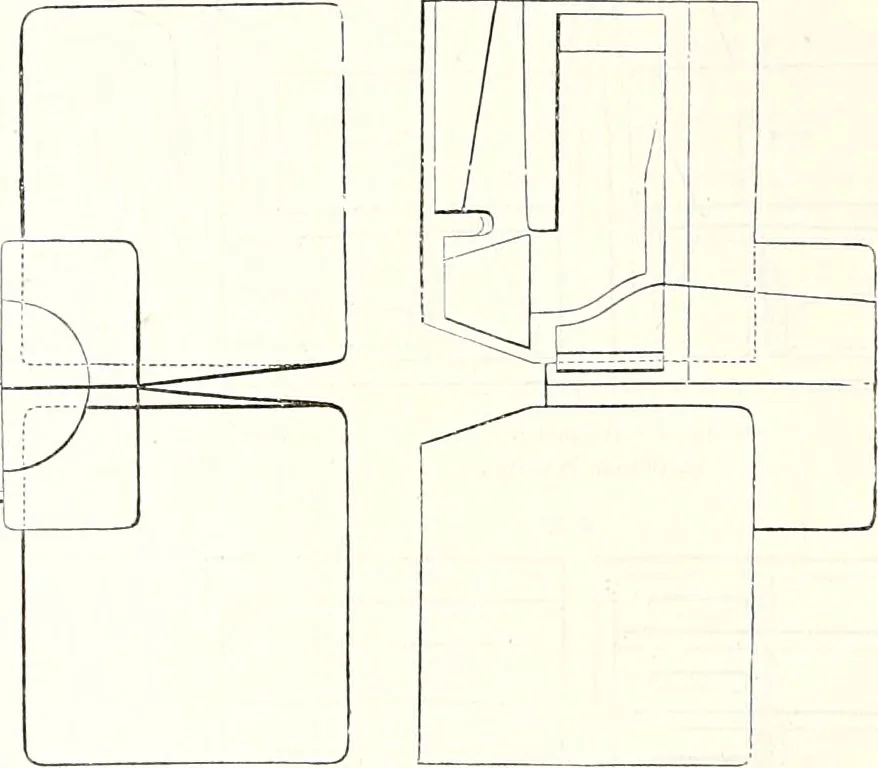

ing to the Russianand Ibe other to the Prussian government, and both of the power of 320 horses: the boilers for theIWian vessel bein<- of the tubular variety, while those for the Prussian vessel are on the common flueplan. The shape and dimensions of the tubular boiler are shown in the figures… … Scale—1-Sth inch = 1 foot. Scale.—1-Stta inch = 1 foot a. Horizontal Section through Fimmces. a. Side View. b. Horizontal Section through Flues. b. LoDgitudinal Section. Figs. 489, 490, and 491, represent the boi-lers of the Retribution, a steamer of 800-horsopower ; the engines being on the double…
