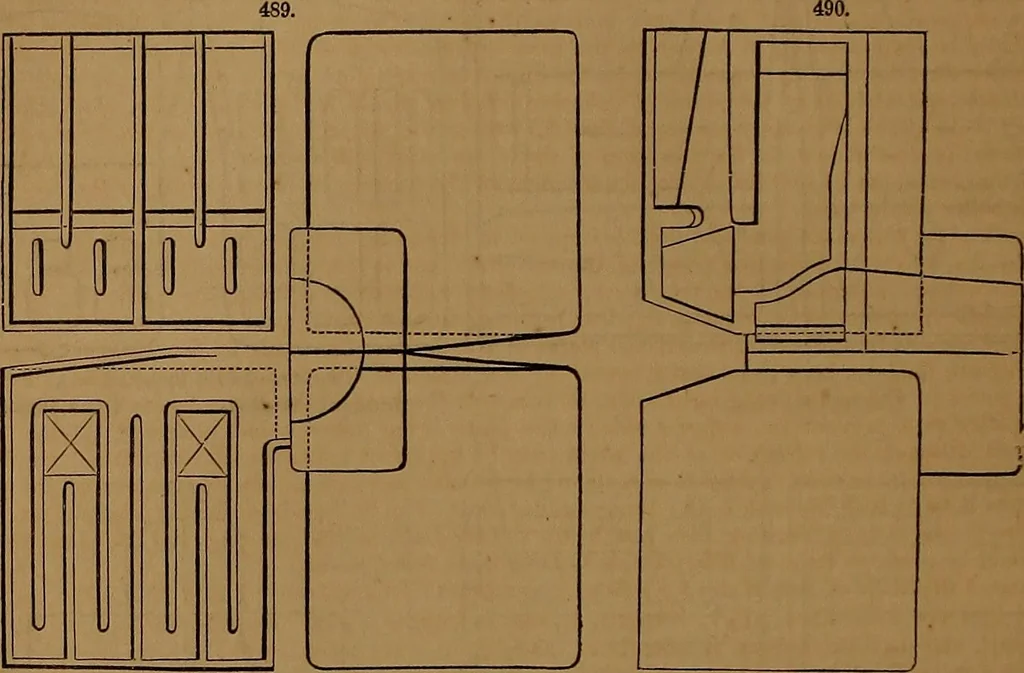

Der Greuss Adler, the one belonging to the Russianand the other to the Prussian government, and both of the power of 320 horses: the boilers for theRussian vessel being of the tubular variety, while those for the Prussian vessel are on the common flueplan. The shape and dimensions of the tubular… … Scale.—l-8th inch = 1 foot. a. Horizontal Section through Furnaces. b. Horizontal Section through Flues. 491. r — j ■ __L„^_ k UdU nnnn Scale.—l-8th inch = 1 foot, a. Side View. b. Longitudinal Section. Figs. 489, 490, and 491, represent the boi-lers of the Retribution, a steamer of 800-horsepower;…
