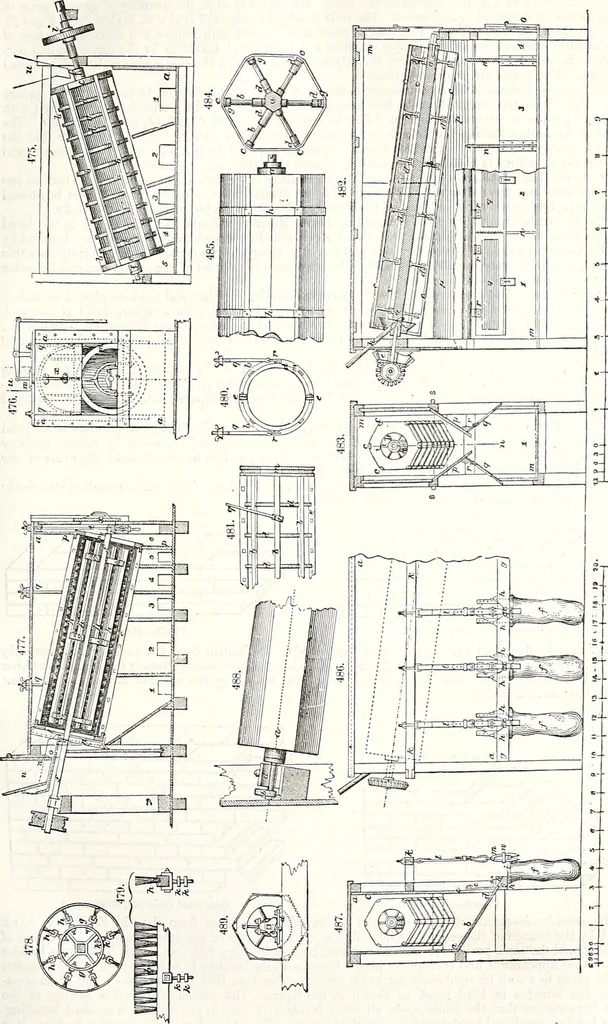

rcumstances, be wound upand lowered, for which purpose the nuts are winged. The screw-bolts are at their ends provided withhooks r r, Figs. 4S0 and 481, which take hold of two side-laths b b, Fig. 481, of the cylindrical frame 01the sieve On the other hand the brush-cylinder, whose shaft//rests on… … 1G4 BOND. Ducted with it by o. This spout is shaken by a nave v, fixed at the shaft//, -which beats during therotation against a tack at the bottom of the shoe. By the slide at v>, the quantity of ground grain inthe shoe can be increased or decreased. The slide .r, which in Fig. 477 is closed,…
