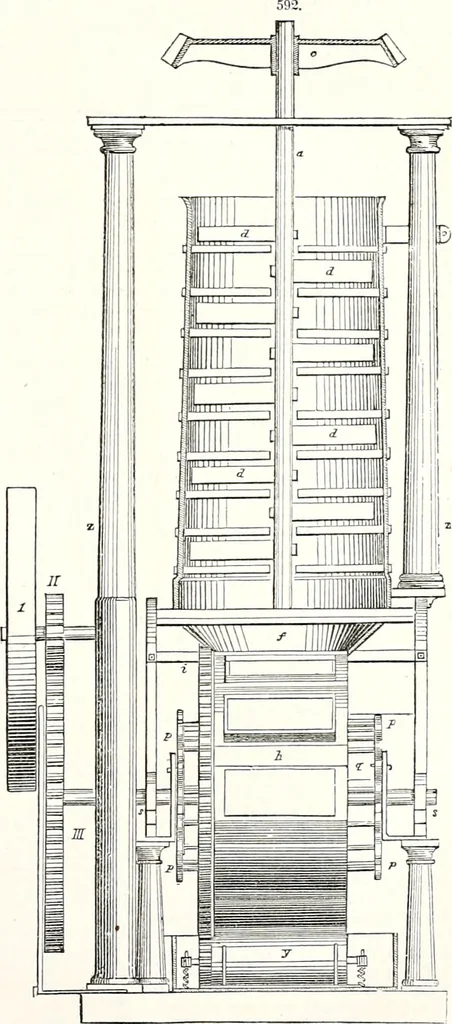

it to the moulds as before mentioned. These cylinders are mounted on elastic bearings, andderive their motion from pinions on their axes, actuated by the toothed wheels on the drums. In thecentre of the foundation plate there is a cavity, or pit, for the reception of the superfluous clay or… … 198 BRICK-MAKING. 593. 0 I 0 J* »P 0 0 °(c — - . _J \ •?. js a Dj® 2 2 2. The polygonal drums are driven by a set of wheels lying at the back of Fig. 591, and thereforein that figure shown by dotted circles. No. I. is a band-wheel, which drives, by a pinicn II, the twowheels III and IV, on the axes…
