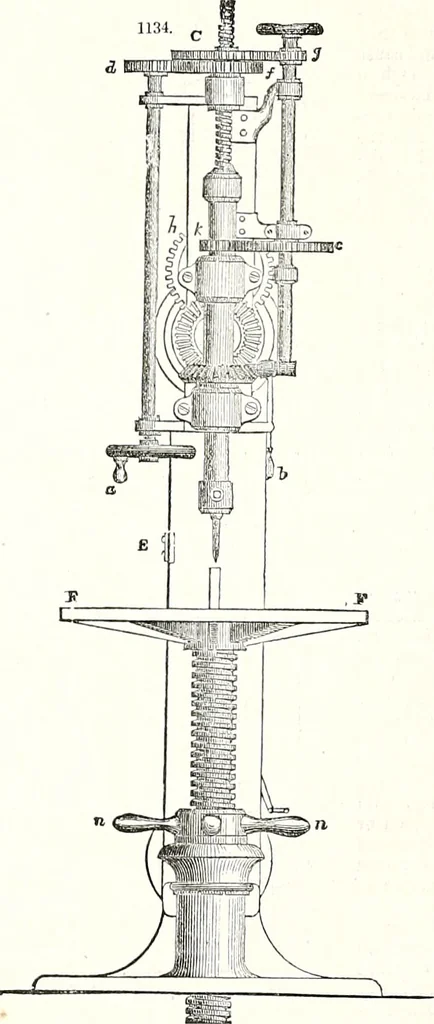

esponding set of cone-pulleys. T, near the top of theframe r r and h h, are geers for decreasing the motion of the drill, similar to the back geering of turn-ing-lathes. Upon the shaft which carries the cone-pulleys T is a bevel geer, wliich drives anothetbevel geer made fast on the spindle-tube B.… … rhe machine is adapted to feed the drill down by hand, or it can be made self-acting. When feedingthe drill by hand, by turning the hand-wheel a, Fig. 1134, motion is communicated through thegeer d to the geer /, which is fastened to a revolving nut which moves the feeding-screw up or down…
