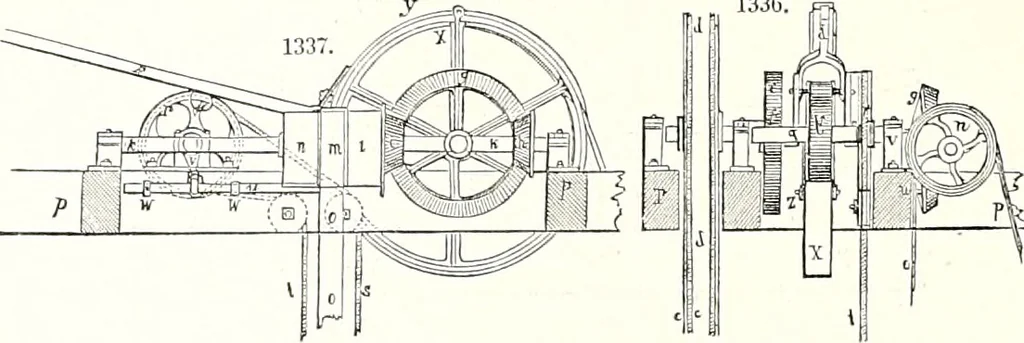

raised, whde the wheel i is by the wheel g turned round, and rotatesfreely on the axis A A, in a direction the reverse of that of the band. If, on the other hand, the band o ois removed from the disk » to I, by which the wheel i takes into the wheel g, while the wheel h is nowkept out of action,… … •i For the purpose of removing the band from one of the three wheels to another, and to regulate thedifferent movemeuts in the described manner, the following arrangement is made. The beam pp sup-ports the bearings of the shaft y, (parallel to that worked with gf) on which is fixed the wheel r.…
