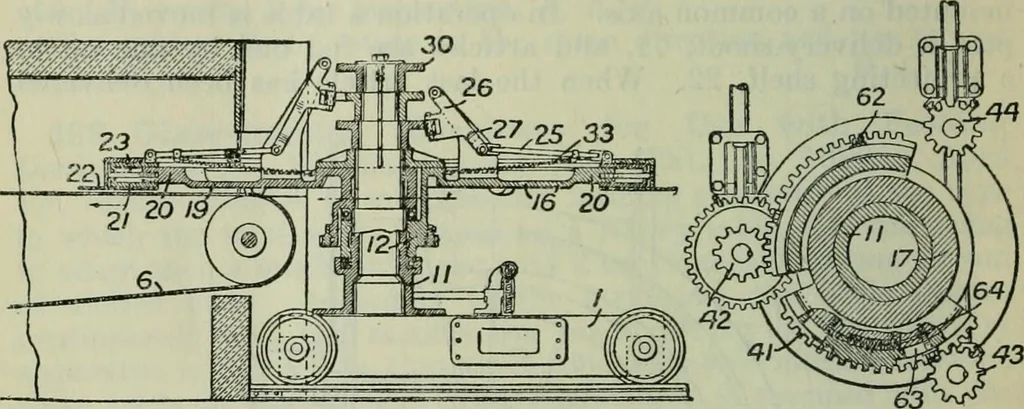

h of the three levers, 26, associated witha table, and a sharp step, 34, on each is so positioned that thelevers will be actuated simultaneously by the springs, 33. Theslide, 21, and shelf, 22, are divided at the middle, and the twoparts are hinged together so that the movement at all points willbe… … Fig. 109. spaced 120° apart and engaging gear segments, 40, 41, fixed totne sleeves, 12, 17, by screws, 62, passing through holes, 63, whichare slotted to allow a limited angular movement of the segmentrelatively to the sleeve under control of a spring, 64. When thetable reaches the feed position…
